Produktbeskrivning

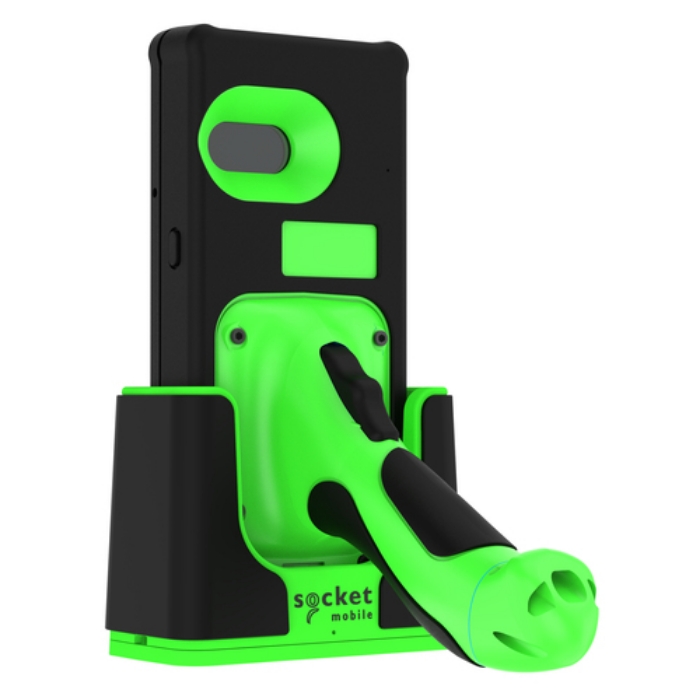

Built for extreme industrial environments, the 963 equips the Apple® iPhone® 17e with powerful long-range scanning capabilities. This handheld solution enables workers to scan 1D/2D barcodes at impressive distances (up to 46 feet) with speed and accuracy while offering Socket Mobile's highest level of industrial-grade durability.
The XtremeScan 963 combines a military-grade iPhone case and a high-performance, long-range barcode scanner into a compact, rugged scanning solution. Designed for warehousing, logistics, manufacturing, and field operations, the 963 empowers mobile workers to capture barcodes from remarkable distances—minimizing repositioning, climbing, or interruption during scanning tasks.
Equipped with a long-range 1D/2D scan engine, the 963 reads barcodes as far as 46 feet, depending on barcode type and size. Whether scanning shelf tags, pallet labels, or individual asset barcodes at a distance, the 963 delivers fast, omnidirectional scanning with a high-precision aimer designed for accurate targeting in all lighting conditions.
Built for durability, the IP67-sealed XtremeScan housing protects the iPhone from dust, water, and drops, making it ready for the rigors of industrial use. The iPhone remains secure and protected throughout the workday, and users can still access and use the phone’s native camera without removing it from the case.
Viktiga egenskaper
Socket Mobile XtremeScan 963 v17e. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wireless, Standard interfaces: Bluetooth, Bluetooth version: 2.1+EDR. Product colour: Black, Green, International Protection (IP) code: IP67, Protection features: Dust resistant, Drop resistant, Water resistant. Power source type: Battery, Battery technology: Lithium-Ion (Li-Ion), Battery capacity: 1200 mAh. Width: 91 mm, Depth: 44.5 mm, Height: 203.2 mm
Teknisk specifikation
Scanning
| Type | Handheld bar code reader |
|---|
| Scanner type | 1D/2D |
|---|
| Sensor type | LED |
|---|
| 2D (matrix & stacked) barcodes supported | Aztec Code,Composite Codes,Data Matrix,DotCode,Grid Matrix Code,MaxiCode,MicroPDF417 |
|---|
| Linear (1D) barcodes supported | Codabar,Code 128,Code 39,Code 93,UPC-A,UPC-E,EAN-13,EAN-8,JAN-13,JAN-8,GS1 DataBar Omnidirectional,GS1 DataBar Expanded,GS1 Databar Limited,GS1 DataBar,GS1-128 (UCC/EAN-128),Trioptic,Matrix 2 of 5,MSI,Code 11 |
|---|
| Optical sensor resolution (W x H) | 1280 x 960 pixels |
|---|
| Light levels (direct sunlight) | 0 - 100000 lx |
|---|
| Tilt reading angle | 33.5 - 44.5 ° |
|---|
Ports & interfaces
| Connectivity technology | Wireless |
|---|
| Standard interfaces | Bluetooth |
|---|
| Bluetooth version | 2.1+EDR |
|---|
| Bluetooth | Yes |
|---|
Performance
| Product colour | Black,Green |
|---|
| International Protection (IP) code | IP67 |
|---|
| Protection features | Dust resistant,Drop resistant,Water resistant |
|---|
| LED indicators | Yes |
|---|
| Print contrast | 25 % |
|---|
| Country of origin | China |
|---|
Power
| Power source type | Battery |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|
| Battery capacity | 1200 mAh |
|---|
| Battery voltage | 3.7 V |
|---|
| Charging time | 7 h |
|---|
Weight & dimensions
| Width | 91 mm |
|---|
| Depth | 44.5 mm |
|---|
| Height | 203.2 mm |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95 % |
|---|
| Storage relative humidity (H-H) | 0 - 60 % |
|---|
| Storage temperature (T-T) | -40 - 70 °C |
|---|
Battery
| Rechargeable battery | Yes |
|---|
| Number of battery cells | 1 |
|---|
| Battery weight | 22 g |
|---|
| Battery capacity | 4.44 Wh |
|---|
Technical details
| Compliance certificates | RoHS,Federal Communications Commission (FCC),UL,CE,UKCA |
|---|
Other features
| Mobile operating systems supported | iOS |
|---|
