Produktbeskrivning

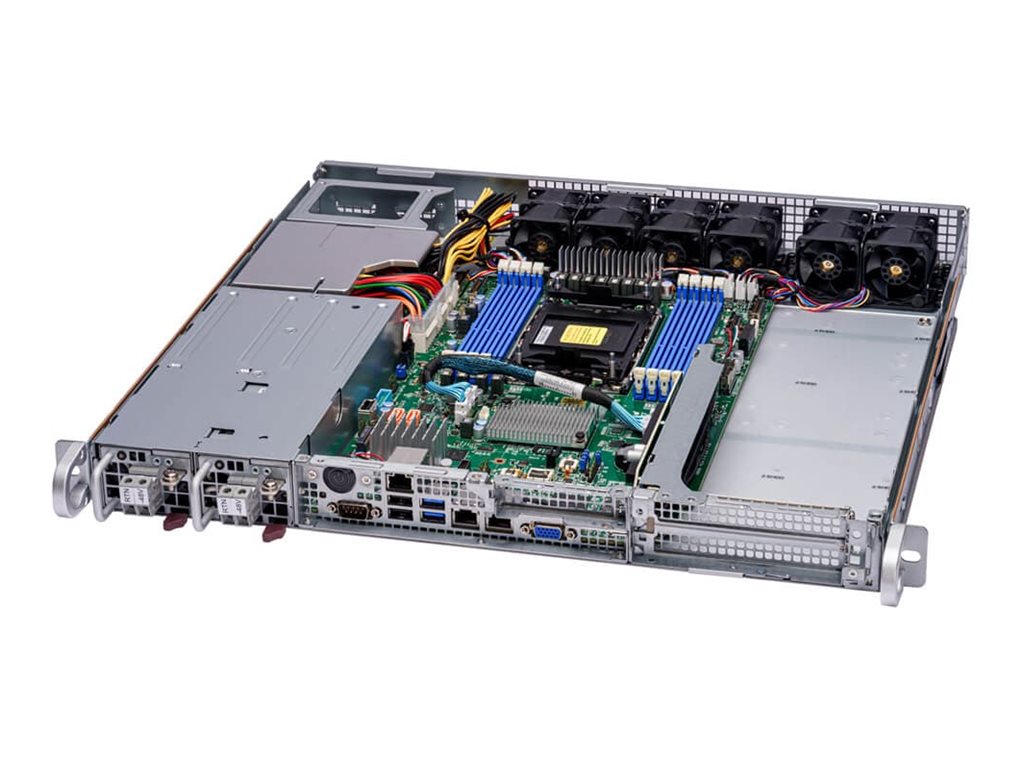

The Supermicro IoT SuperServer 111E-FDWTR is designed to meet the demands of desktops and servers, offering a blend of performance, flexibility, and security. This server is housed in a rack-mountable chassis, featuring a robust cooling system with 6 built-in fans and an LED panel for real-time status monitoring. It supports a wide range of storage options, including 2.5" bays and an M.2 slot, catering to various performance and capacity needs.

With its advanced connectivity options, including dual 10 Gigabit Ethernet ports and multiple USB interfaces, this server ensures seamless integration into any network environment. The inclusion of DDR5 memory slots allows for significant memory expansion, making it a scalable solution for growing businesses. Additionally, the server's commitment to security is evident through the incorporation of a TPM 2.0 chip and compliance with stringent standards, providing peace of mind for users handling sensitive data.



Egenskaper

Robust cooling system
Equipped with 6 built-in fans, this Supermicro IoT SuperServer ensures optimal performance by maintaining a cool environment for the hardware components, even under heavy computational loads.

Flexible storage options
With support for both 2.5" internal bays and an M.2 2280/22110 slot, the server offers versatile storage solutions, allowing for a mix of speed and capacity to meet various data storage requirements.

Advanced connectivity
Featuring dual 10 Gigabit Ethernet ports powered by Intel X550-AT2 controllers, alongside additional Gigabit Ethernet, USB 3.2 Gen 1, and VGA ports, this server provides a wide range of connectivity options for diverse networking needs.

High scalability
The server's design includes 8 DIMM 288-pin slots for DDR5 SDRAM, supporting ECC and registered memory, which allows for significant memory expansion to accommodate growing data demands.

Secure and reliable
Incorporating a Trusted Platform Module (TPM 2.0) security chip and compliant with NIST 800-193 standards, the server ensures data integrity and security, making it a trustworthy choice for sensitive and critical applications.



Teknisk specifikation

Typ	Server
Formfaktor för produkt	Kan monteras i rack - 1U
Inbyggda enheter	Lysdiodspanel, 6 x fläktar
Sensorer	Temperatur, spänningssensor
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Skalbarhet för server	1-vägs
Antal interna fack	2
Färg	Silver

CPU	Ingen CPU
Max. CPU-antal	1
CPU-uppgraderbarhet	Uppgraderingsbar
CPU-kortplats	LGA4677 Socket-E
Kretstyp	Intel C741
Moderkortets namn	Supermicro X13SEW-TF

Installerad storlek	0 GB (installerad) / 2 TB (max)
Teknik	DDR5 SDRAM - ECC
Formfaktor	DIMM 288-pin
Kortplatser	8 (Total) / 8 (tom)
Egenskaper	Registrerad

Typ	Ingen HDD

Typ	SATA
Typ av styrgränssnitt	SATA 6Gb/s
Antal kanaler	2
RAID-nivå	RAID 0, RAID 1

Typ	NVMe - M.2 (PCI Express 3.0 x2)
Antal kanaler	1

Typ	Ingen optisk drivenhet

Bildskärmstyp	Ingen.

Videogränssnitt	VGA

Ethernet-portar	1 x 10 Gigabit Ethernet, 2 x Gigabit Ethernet
Ethernet-styrenhet	2 x Intel X550-AT2
Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
Protokoll för administration på distans	IPMI 2.0
Funktioner	ACPI-stöd, stöd för KVM över IP

Fack	2 (totalt)/ 2 (ledig) x intern 2.5" 1 (totalt)/ 1 (ledig) x intern M.2 2280/22110
Kortplatser	1 (totalt)/ 1 (ledig) x PCIe 5.0 x16 - lågprofil 2 (totalt)/ 2 (ledig) x PCIe 5.0 x16 - hellängd, helhöjd 1 (totalt)/ 1 (ledig) x M.2 Card - 2280/22110 (Key M)
Gränssnitt	1 x hantering (Gigabit Ethernet) - RJ-45 2 x USB 3.2 Gen 1 1 x VGA 2 x LAN (10Gigabit Ethernet) - RJ-45 2 x USB 2.0

Standarder som följs	ACPI, NIST 800-193

Typ av enhet	Nätaggregat
Redundant ström	Ja
Effekt	600 Watt

Medföljande OS	Inget operativsystem

Bredd	43.688 cm
Djup	42.93 cm
Höjd	4.45 cm
Vikt	4.54 kg

Emballagets bredd	68.5 cm
Emballagets djup	60.9 cm
Emballagets höjd	20.3 cm
Emballagets vikt	6.8 kg

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	8 - 90 % (icke-kondenserande)
