Produktbeskrivning

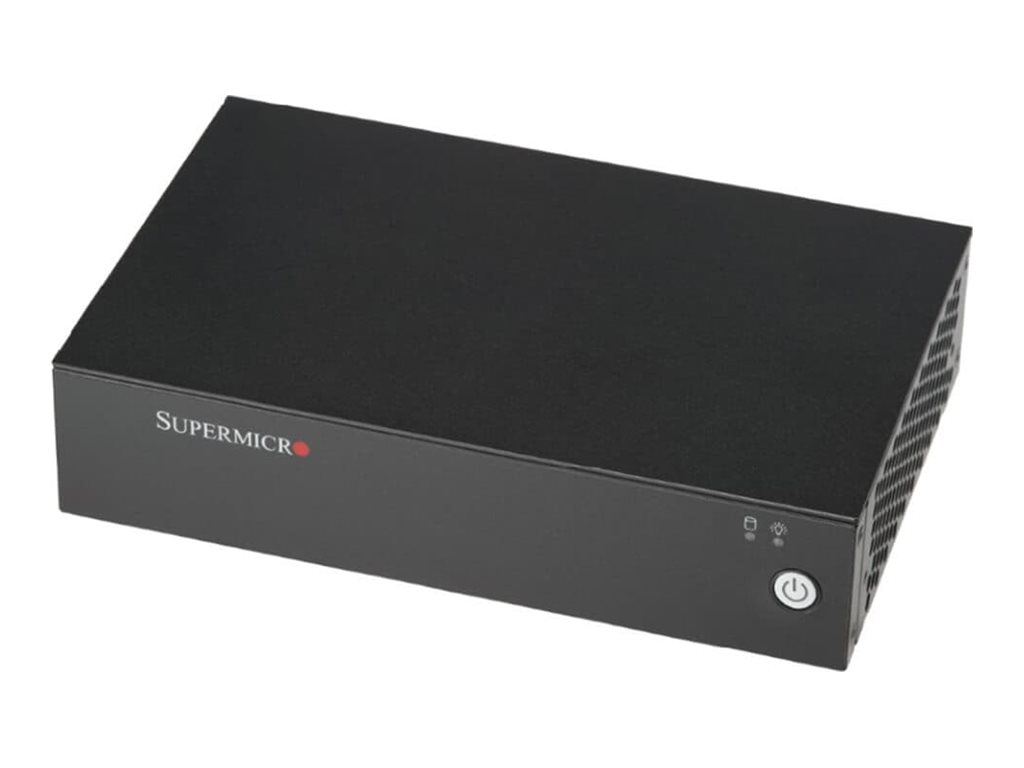

The Supermicro IoT SuperServer E102-13R-H is engineered to meet the rigorous demands of desktops and servers, offering a blend of performance, connectivity, and security. This server, devoid of a built-in display, focuses on delivering robust performance through its support for DDR5 SDRAM and the flexibility to upgrade the CPU, ensuring it can handle the evolving requirements of modern IT environments. Its compact design incorporates a 40mm fan and LED panel, optimizing space without compromising efficiency. Connectivity is a strong suit, with dual 2.5 Gigabit Ethernet ports, DisplayPort 1.4a/USB-C 3.2 Gen 2, and HDMI interfaces, facilitating a wide range of connections from basic networking to high-speed data transfers and video outputs. Expansion is made easy with M.2 card slots, supporting various form factors for storage and networking enhancements. Security features, including a TPM 2.0 security chip and a Kensington security slot, provide peace of mind by safeguarding sensitive information. The Supermicro IoT SuperServer E102-13R-H is an ideal choice for businesses seeking a server that combines efficiency, scalability, and security.



Egenskaper

Compact and efficient design
The Supermicro IoT SuperServer E102-13R-H features a base system form factor with a built-in 40mm fan and LED panel, ensuring optimal performance in a compact size. Its internal bay supports a 2.5" drive, making it versatile for various storage needs.

Versatile connectivity options
Equipped with multiple interface options, including 2 LAN (2.5 Gigabit Ethernet) ports, 2 DisplayPort 1.4a/USB-C 3.2 Gen 2 ports, 2 USB 3.2 ports, and 2 HDMI ports, this server offers extensive connectivity for a wide range of devices and networks.

Advanced expansion capabilities
Featuring M.2 card slots with support for 3042/2242/2280 M.2 Key B and 2230 M.2 Key E, the Supermicro IoT SuperServer provides flexible expansion options to meet the demands of various applications.

Robust security features
The server includes a Trusted Platform Module (TPM 2.0) security chip and a Kensington security slot, offering enhanced security measures to protect sensitive data and prevent unauthorized access.

High-performance potential
With support for DDR5 SDRAM and the capacity to upgrade the CPU, this server is designed for high performance and scalability, catering to the evolving needs of businesses and IT environments.



Teknisk specifikation

Typ	Server
Formfaktor för produkt	Bassystem
Inbyggda enheter	Lysdiodspanel, 1 x 40 mm fläkt
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Skalbarhet för server	1-vägs
Antal interna fack	1
Färg	Svart

CPU	Ingen CPU
Max. CPU-antal	1
CPU-uppgraderbarhet	Uppgraderingsbar
Moderkortets namn	Supermicro X13SRN-H-WOHS

Installerad storlek	0 GB (installerad) / 64 GB (max)
Teknik	DDR5 SDRAM - icke ECC
Formfaktor	SO DIMM 262-pin
Kortplatser	2 (Total) / 2 (tom)

Typ	Ingen HDD

Typ	1 x SATA
Typ av styrgränssnitt	SATA 6Gb/s

Typ	Ingen optisk drivenhet

Bildskärmstyp	Ingen.

Videogränssnitt	HDMI

Ethernet-portar	2 x 2.5 Gigabit Ethernet
Datalänkprotokoll	Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet

Fack	1 (totalt)/ 1 (ledig) x intern 2.5"
Kortplatser	1 (totalt)/ 1 (ledig) x M.2 Card (3042/2242/2280 M.2 Key B-plats) 1 (totalt)/ 1 (ledig) x M.2 Card (2230 M.2 Key E-plats)
Gränssnitt	2 x LAN (2.5Gigabit Ethernet) - RJ-45 2 x DisplayPort1.4a/USB-C 3.2 Gen 2 2 x USB 3.2 2 x HDMI

Stöld-/inbrottsskydd	Plats för säkerhetslås (kabellås säljs separat)
Typ av säkerhetsplats	Kensington säkerhetsplats

Typ av enhet	Nätaggregat
Effekt	84 Watt

Medföljande OS	Inget operativsystem

Bredd	19 cm
Djup	12 cm
Höjd	4.4 cm
Vikt	1.2 kg

Emballagets bredd	30 cm
Emballagets djup	28 cm
Emballagets höjd	13 cm
Emballagets vikt	2 kg

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	8 - 90 % (icke-kondenserande)
