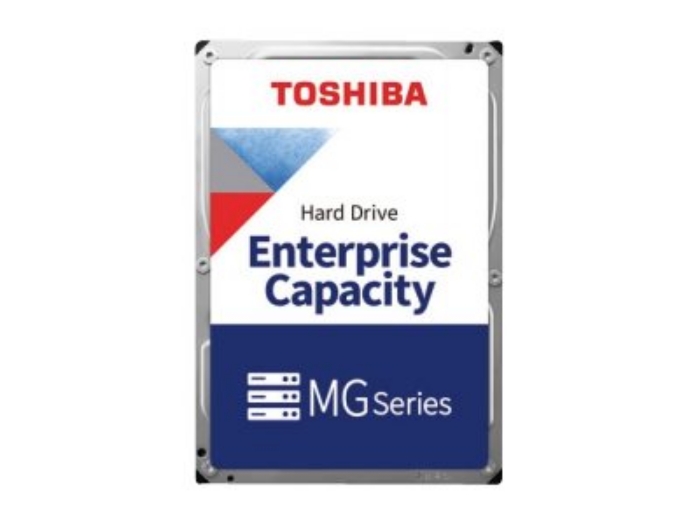

Produktbeskrivning

The Enterprise Capacity 7200rpm HDD models offer up to 8TB(SATA/SAS), a choice of interface (SATA - MG08ADA Series, and SAS - MG08SDA Series), as well as a choice of 512 Native(512n) sector or 512 emulation(512e) sector technologies. All models utilize a power-efficient mechanical design incorporating the latest advancements in HDD technology. MG08-D Series models are designed to provide plug-and-play robustness using the industry standard 3.5-inch form factor. Model options supporting Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED) are also available.



Egenskaper

● Industry standard 3.5-inch 26.1mm height form factor
● Up to 8TB (SATA or SAS)
● 7200rpm performance
● Choice of SATA 6Gbit/s or dual-port SAS 12Gbit/s interface
● 550 total TB transferred per year workload rating
● Choice of 512n or 512e (advanced format) sector technology
● Sanitize Instant Erase (SIE) and Self-Encrypting Drive (SED) option models available



Teknisk specifikation

Typ av enhet	Hårddisk - inbyggd
Kapacitet	4 TB
Formfaktor	3.5"
Gränssnitt	SAS 12Gb/s
Buffertstorlek	256 MB
Egenskaper	Verksamhetskritisk, 24x7 kontinuerlig drift, avancerat format 512e, Enterprise Capacity

Hårddiskens överföringshastighet	1.2 GBps (extern)
Intern datafrekvens	243 MBps
Söktid	7.4 ms (medel) / 8.2 ms (max)
Genomsnittlig åtkomsttid	4.2 ms
Spindelhastighet	7200 rpm

MTBF (genomsnittstid mellan fel)	2,000,000 timmar
Dygnet-runt drift	Ja
Oåterkalleligt fel	1 per 10^15

Gränssnitt	1 x SAS 12 Gb/s
Kompatibelt fack	3.5"

Strömkonsumtion	8.6 Watt (aktiv)

Service och support	Begränsad garanti - 5 år
