Produktbeskrivning

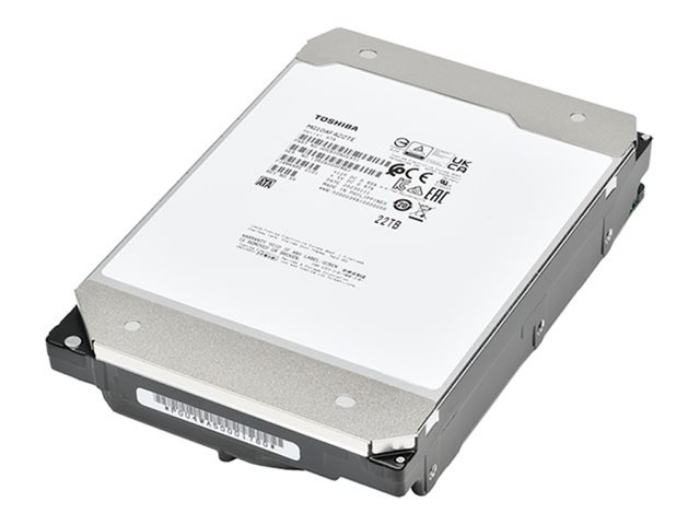

The Toshiba MG Series MG10SFA22TE hard drive redefines storage solutions with its exceptional capacity and durability. Designed to support operations around the clock, it offers a substantial 22 TB of storage space, complemented by a 512 MB buffer, making it an ideal choice for businesses and individuals with extensive data storage needs. Its helium sealed-drive design not only ensures the integrity and safety of stored data but also significantly improves the drive's performance and longevity. With a data transfer rate of 12 Gbit/s and a spindle speed of 7200 rpm, users can expect swift and reliable access to their data, facilitating efficient workflows and operations. Moreover, the drive's capability to handle a workload of up to 550 TB per year attests to its robustness and reliability, making it a smart investment for those seeking a high-capacity, durable storage solution.



Egenskaper

Robust durability
Engineered for reliability, the Toshiba MG Series hard drive boasts an impressive MTBF of 2,500,000 hours. Its helium sealed-drive design not only enhances its durability but also optimizes its performance for demanding operations around the clock.

High capacity storage
With a vast storage capacity of 22 TB and a buffer size of 512 MB, this hard drive is ideal for extensive data storage needs, including Online Transaction Processing (OLTP) and advanced format 512e, accommodating a workload up to 550 TB per year.

Efficient performance
Featuring a data transfer rate of 12 Gbit/s and a spindle speed of 7200 rpm, the Toshiba MG Series hard drive ensures swift and reliable access to your data, making it perfect for high-speed data retrieval and storage solutions.



Teknisk specifikation

Typ av enhet	Hårddisk - inbyggd
Kapacitet	22 TB
Formfaktor	3.5"
Buffertstorlek	512 MB
Egenskaper	Online Transaction Processing (OLTP), avancerat format 512e, CMR (Conventional Magnetic Recording), Helium Sealed-Drive Design, arbetsbelastning upp till 550 TB per år
Bredd	10.185 cm
Djup	14.7 mm
Höjd	2.61 mm
Vikt	720 g

Hårddiskens överföringshastighet	12 Gbit/s (extern)
Spindelhastighet	7200 rpm

MTBF (genomsnittstid mellan fel)	2,500,000 timmar
Dygnet-runt drift	Ja
Oåterkalleligt fel	10 per 10^16
Ladda/ladda ur cykler	600,000

Gränssnitt	1 x SAS 12 Gb/s
Kompatibelt fack	3.5"

Strömkonsumtion	4.82 Watt (aktivt overksam) 8.86 Watt (aktiv (typisk))

Min temperatur vid drift	5 °C
Max temperatur vid drift	55 °C
Min temperatur vid förvaring	-40 °C
Max temperatur vid förvaring	70 °C
Luftfuktighet vid drift	5 - 90% RH (non-condensing)
Stöttolerans (vid drift)	5 g @ 2 ms
Stöttolerans (i vila)	200 g @ 2 ms
Vibrationstolerans (vid drift)	0.75 g @ 5-300 Hz
Vibrationstolerans (i vila)	3 g @ 5-500 Hz
Ljudnivå	20 dBA
