Produktbeskrivning

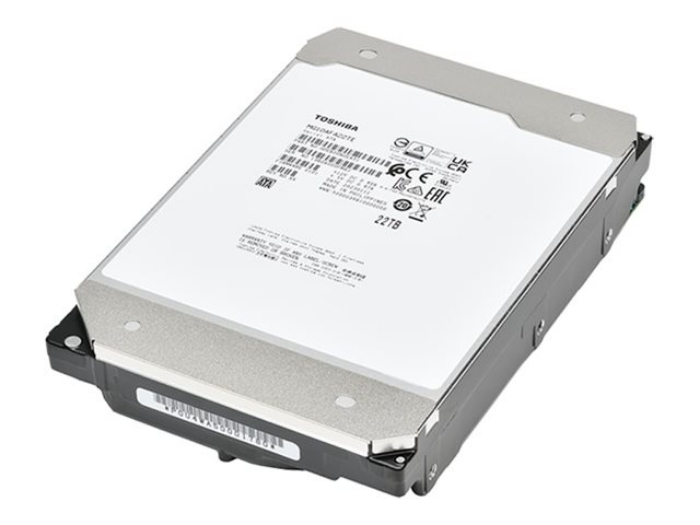

The Toshiba MG10F Series hard drive is designed to meet the high-capacity storage needs of today's demanding data environments. With a 22 TB capacity, it offers ample space for large-scale data storage, while the helium sealed-drive design ensures durability and quieter operation. This hard drive is built for 24x7 operation, featuring a 512 MB buffer size and a spindle speed of 7200 rpm, making it capable of handling heavy-duty workloads up to 550 TB per year and Online Transaction Processing (OLTP). The advanced format 512e and conventional magnetic recording (CMR) technology further enhance its performance and reliability.

Energy efficiency is a key aspect of the MG10AFA22TE model, with an active idle power consumption of just 4.5 W and an active typical mode of 8.38 W, helping to reduce operational costs. Additionally, the drive's robust design is evidenced by a MTBF of 2,500,000 hours and advanced shock and vibration tolerance, ensuring it can withstand the rigors of continuous operation. Whether for business or personal use, the Toshiba MG10F Series hard drive is a reliable and efficient solution for your storage needs.



Egenskaper

Robust design
The helium sealed-drive design not only enhances the durability of the Toshiba MG10F Series but also ensures a quieter operation with a sound emission of just 20 dBA, making it an excellent choice for noise-sensitive environments.

High capacity storage
With a massive 22 TB capacity and a data transfer rate of 6 Gbit/s, this hard drive meets the demands of extensive storage requirements, ensuring your data is always accessible when you need it.

Reliable performance
Equipped with a 512 MB buffer size and a spindle speed of 7200 rpm, the MG10AFA22TE model delivers efficient and reliable performance for both heavy-duty workloads up to 550 TB per year and Online Transaction Processing (OLTP).

Energy efficient
The drive's power consumption is optimized for efficiency, with an active idle mode consuming only 4.5 W and an active typical mode at 8.38 W, reducing operational costs.

Enhanced durability
Designed to withstand the rigors of continuous operation, this hard drive boasts a MTBF of 2,500,000 hours, along with advanced shock and vibration tolerance, ensuring long-term reliability.



Teknisk specifikation

Typ av enhet	Hårddisk - inbyggd
Kapacitet	22 TB
Formfaktor	3.5"
Buffertstorlek	512 MB
Egenskaper	Online Transaction Processing (OLTP), avancerat format 512e, CMR (Conventional Magnetic Recording), Helium Sealed-Drive Design, arbetsbelastning upp till 550 TB per år
Bredd	10.185 cm
Djup	14.7 mm
Höjd	2.61 mm
Vikt	720 g

Hårddiskens överföringshastighet	6 Gbit/s (extern)
Intern datafrekvens	271 MBps
Spindelhastighet	7200 rpm

MTBF (genomsnittstid mellan fel)	2,500,000 timmar
Dygnet-runt drift	Ja
Oåterkalleligt fel	10 per 10^16
Ladda/ladda ur cykler	600,000

Gränssnitt	1 x SATA 6 Gb/s
Kompatibelt fack	3.5"

Strömkonsumtion	4.5 Watt (aktivt overksam) 8.38 Watt (aktiv (typisk))

Min temperatur vid drift	5 °C
Max temperatur vid drift	55 °C
Min temperatur vid förvaring	-40 °C
Max temperatur vid förvaring	70 °C
Luftfuktighet vid drift	5 - 90% RH (non-condensing)
Stöttolerans (vid drift)	5 g @ 2 ms
Stöttolerans (i vila)	200 g @ 2 ms
Vibrationstolerans (vid drift)	0.75 g @ 5-300 Hz
Vibrationstolerans (i vila)	3 g @ 5-500 Hz
Ljudnivå	20 dBA
