Produktbeskrivning

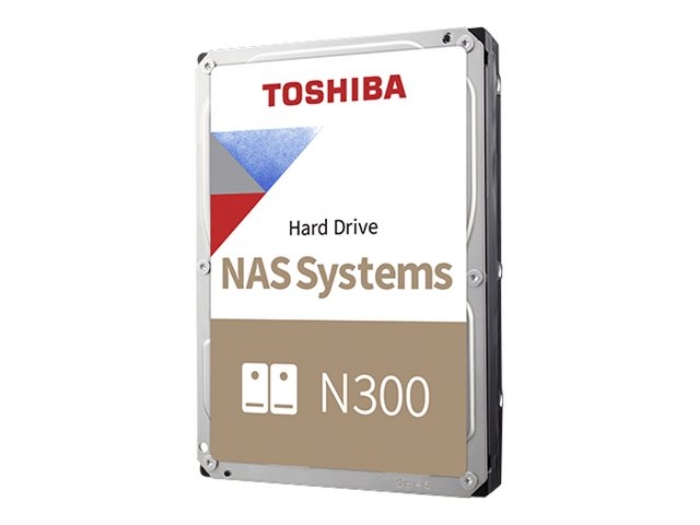

The N300 NAS Hard Drive offers unprecedented reliability for NAS and other high-performance storage systems. It is optimized to meet the reliability, endurance, performance and scalability requirements of 24-hour x 7-day high-capacity storage for personal, home office and small business use.
Egenskaper
Designed for NASThrough its contact with NAS manufacturers, Toshiba recognizes the need for high-reliability disks in support of modern data storage and retrieval demands including streaming, backup and archiving. The drive, which can support multi-RAID systems with up to 8 hard disk drives, allows large volumes of data to be reliably stored and accessed by multiple clients 24 hours a day, 365 days a year.
Integrated RV sensorsRegular hard disk drives without RV sensors can affect the performance of a multi-bay NAS System by generating 'knock-on' vibration. N300 drives ensure high reliability by minimizing vibration effects through their advanced control and sensing technology. Multiple sensors detect the slightest shock and built-in RV sensors also compensate for rotational vibration - eliminating the possibility of 'knock-on' vibration in multi-bay NAS configuration systems.
Reliable always-on operationNAS systems in small businesses or creative environments often need to be accessed by several users, at different locations, simultaneously. Therefore today's NAS drives must deliver high data transfer rates and simultaneous upload and download 24 hours a day, 7 days a week.
High durability and heat preventionUse of high-endurance components is one of the reasons that the N300 series offers better durability than other conventional hard disk drives. At the same time, automatic adjustment of seek speed to reduce heat during high-temperature operation further improves endurance in demanding situations.
High speed for multi-drive environmentHigh performance and fast read speed is made possible under high data access loads from multiple users. This makes the drive suitable for small businesses and creative professionals looking for solutions to handle high data volumes using multi-RAID NAS environments.
Optimized cache allocationToshiba's Dynamic Cache Technology, a self-contained cache algorithm with on-board buffer management, optimizes how the cache is allocated during read/write to provide the high-level performance demanded by real-time domains.
Reduced noise and energy costsThe N300 NAS Hard Drives use a helium-sealed design, achieving low power consumption while increasing storage density. Toshiba Group's laser welding technology ensures that the helium remains securely sealed inside the drive enclosure. With the environment in mind, the helium-filled N300 models minimize acoustic output to just 20 dB (typical) in idle mode. The devices are ideal for large scale server systems allowing for rich scalability of up to 8 drives.
Teknisk specifikation
Allmänt
Typ av enhet | Hårddisk - inbyggd |
Kapacitet | 18 TB |
Formfaktor | 3.5" |
Gränssnitt | SATA 6Gb/s |
Buffertstorlek | 512 MB |
Egenskaper | RV-sensor, stötsensor, Native Command Queuing (NCQ), Halogen Free, Advanced Format-teknik, 24x7 kontinuerlig drift, Felavhjälpningskontroll, Toshiba Dynamic Cache Technology, Toshiba Stable Platter Technology |
Bredd | 101.85 mm |
Djup | 147 mm |
Höjd | 26.1 mm |
Vikt | 720 g |
Prestanda
Hårddiskens överföringshastighet | 600 MBps (extern) |
Intern datafrekvens | 281 MBps |
Genomsnittlig åtkomsttid | 4.17 ms |
Spindelhastighet | 7200 rpm |
Pålitlighet
MTBF (genomsnittstid mellan fel) | 1,200,000 timmar |
Dygnet-runt drift | Ja |
Oåterkalleligt fel | 1 per 10^14 |
Expansion och anslutningar
Gränssnitt | 1 x SATA 6 Gb/s |
Kompatibelt fack | 3.5" |
Strömtillförsel
Strömkonsumtion | 4.14 Watt (aktivt overksam) |
Diverse
Standarder som följs | RoHS |
Förpackningstyp | Parti |
Mått och vikt (brutto)
Emballagets bredd | 13.6 cm |
Emballagets djup | 6 cm |
Emballagets höjd | 18.9 cm |
Emballagets vikt | 915 g |
Tillverkarens garanti
Service och support | Begränsad garanti - 3 år |
Miljöparametrar
Min temperatur vid drift | 0 °C |
Max temperatur vid drift | 65 °C |
Min temperatur vid förvaring | -40 °C |
Max temperatur vid förvaring | 70 °C |
Stöttolerans (vid drift) | 70 g @ 2 ms |
Stöttolerans (i vila) | 250 g @ 2 ms |
Vibrationstolerans (vid drift) | 0.75 g @ 5-300 Hz |
Vibrationstolerans (i vila) | 3 g @ 5-500 Hz |
