Produktbeskrivning

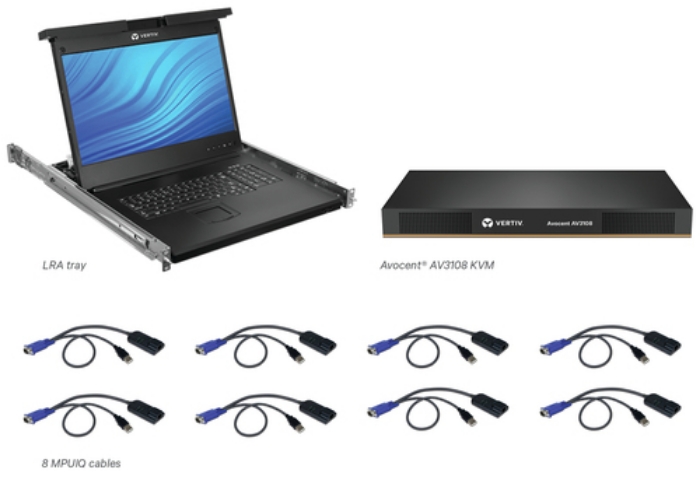

Avocent LCD Local Rack Access Console
The Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system mo​nitoring convenient and less time-consuming.

- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio.
- Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space
- KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches
- User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages.
- Data Center Local Access: Complete entry point to local servers when needed.
- Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.



Viktiga egenskaper

Vertiv Avocent LCD Local Rack Access Console, 8P KVM, 8 CABLES, USB KB-ARB. Display diagonal: 48.3 cm (19"), Display resolution: 1366 x 768 pixels, Display: LED LCD. Interface: USB, Keyboard port type: USB, Mouse port type: USB. Keyboard language: US International, Keyboard layout: QWERTY. Certification: UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC
FCC Class A. Power supply type: AC, Power consumption (typical): 17 W, Power consumption (standby): 0.5 W



Teknisk specifikation

Display diagonal	19 "
Display resolution	1366 x 768 pixels
Display	LED LCD
On Screen Display (OSD)	Yes
Viewable size diagonal	470 mm
Pixel pitch	300 x 300 mm
Viewable size, vertical	230 mm
Viewable size, horizontal	410 mm
Aspect ratio	1:1,16:9
Number of OSD languages	7
Contrast ratio (typical)	1000:1
Display type	TFT
Display brightness	250 cd/m²
Viewing angle, vertical	160 °
Viewing angle, horizontal	170 °

Material	Plastic,Steel
Display connection	Yes
Size (imperial)	19 "
Rack mounting	Yes
Plug and Play	Yes
On/off switch	Yes
Built-in KVM switch	Yes
Product colour	Black
Number of computers controlled	8
Height (in Rack Units)	1
LED indicators	Yes
Buttons	Auto,Menu
KVM switch ports quantity	8
Relative humidity	10 - 80 %
Operating relative humidity (H-H)	10 - 80 %
Maximum resolution	1600 x 1200 pixels
Operating temperature (T-T)	0 - 50 °F
Rack capacity	1U

Mouse port type	USB
Interface	USB
Video port type	VGA
Keyboard port type	USB
USB 2.0 Type-A ports quantity	2

Built-in touchpad	Yes
Keyboard language	US International
Keyboard layout	QWERTY
Keyboard number of keys	103

Power supply type	AC
Power consumption (typical)	17 W
Power consumption (standby)	0.5 W
AC adapter input voltage	90 - 264 V
AC adapter output voltage	12 V
AC adapter frequency	50 - 60 Hz
Output current	3.3 A

Certification	UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC FCC Class A

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C

Width	482.6 mm
Height	44.5 mm
Depth	533.4 mm
Weight	9980 g

Package weight	15400 g
Package dimensions (WxDxH)	749.3 x 584.2 x 216 mm

Cables included	KVM
Mounting brackets included	Yes
Quick installation guide	Yes
Rack mount kit	Yes
AC adapter included	Yes
Package type	Box
