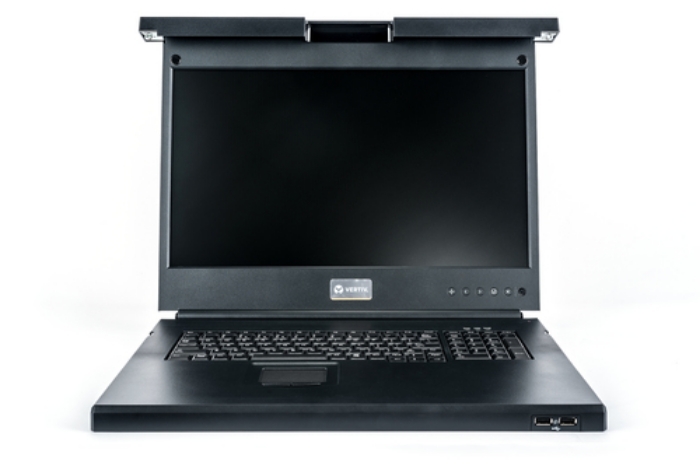

Avocent LCD Local Rack Access Console
The Avocent LRA Console family provides the simplicity, efficiency and ease of use to make it the perfect in data center access point. The LRA line enables ease of access to multiple servers making software upgrades, troubleshooting and system mo​nitoring convenient and less time-consuming.

- Widescreen: 18.5” LED LCD panel with a 16:9 aspect ratio. Supports resolutions up to 1600 x 1200 at both full screen and aspect ratio.
- Form Factor: Easy access in the 1U space. Detent lock engages when stowed in the rack. Room for KVM installation in the same 1U space
- KVM Compatibility: LRA Consoles are compatible with all Avocent data center KVM switches
- User Interface: On-Screen menu has an intuitive design and can be accessed in 7 languages.
- Data Center Local Access: Complete entry point to local servers when needed.
- Ease of use: Full desktop style keyboard with number pad, touch pad and 2 USB 2.0 pass through ports.



Viktiga egenskaper

Vertiv Avocent LRA185KMM-201 rack console 48.3 cm (19") 1366 x 768 pixels Plastic, Steel Black 1U. Display diagonal: 48.3 cm (19"), Display resolution: 1366 x 768 pixels, Display: TFT. Interface: USB, Keyboard port type: USB, Mouse port type: USB. Keyboard language: UK English, Keyboard layout: QWERTY. Certification: UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC
FCC Class A. Power supply type: AC, Power consumption (typical): 17 W, Power consumption (standby): 0.5 W



Teknisk specifikation

Display diagonal	19 "
Display resolution	1366 x 768 pixels
Display	TFT
Viewable size diagonal	470 mm
Viewable size, horizontal	410 mm
Viewable size, vertical	230 mm
On Screen Display (OSD)	Yes
Pixel pitch	300 x 300 mm
Aspect ratio	1:1,16:9
Number of OSD languages	7
Display type	TFT
Contrast ratio (typical)	1000:1
Display brightness	250 cd/m²
Viewing angle, horizontal	170 °
Viewing angle, vertical	160 °

Material	Plastic,Steel
On/off switch	Yes
Rack mounting	Yes
Display connection	Yes
Plug and Play	Yes
Size (imperial)	19 "
Built-in KVM switch	No
Product colour	Black
Buttons	Auto,Menu
Number of computers controlled	1
Operating relative humidity (H-H)	10 - 80 %
Relative humidity	10 - 80 %
Operating temperature (T-T)	0 - 50 °F
LED indicators	Yes
Height (in Rack Units)	1
Maximum resolution	1600 x 1200 pixels
Rack capacity	1U

Interface	USB
Video port type	VGA
Mouse port type	USB
Keyboard port type	USB
USB 2.0 Type-A ports quantity	2

Built-in touchpad	Yes
Keyboard number of keys	103
Keyboard layout	QWERTY
Keyboard language	UK English

Power supply type	AC
Power consumption (typical)	17 W
Power consumption (standby)	0.5 W
AC adapter input voltage	90 - 264 V
AC adapter output voltage	12 V
AC adapter frequency	50 - 60 Hz
Output current	3.3 A

Certification	UL, CE, CCC, BSMI, C-Tick, EAC, VCCI, KCC FCC Class A

Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Width	482.6 mm
Height	44.5 mm
Depth	533.4 mm
Weight	9980 g
Mounting depth (min)	613 mm
Mounting depth (max)	706 mm

Package weight	15400 g
Package dimensions (WxDxH)	749.3 x 584.2 x 216 mm

Cables included	USB,VGA
Mounting brackets included	Yes
Quick installation guide	Yes
Rack mount kit	Yes
AC adapter included	Yes
Package type	Box
