Produktbeskrivning

Allows for monitoring and managing of two active computers through a single KVM.



Viktiga egenskaper

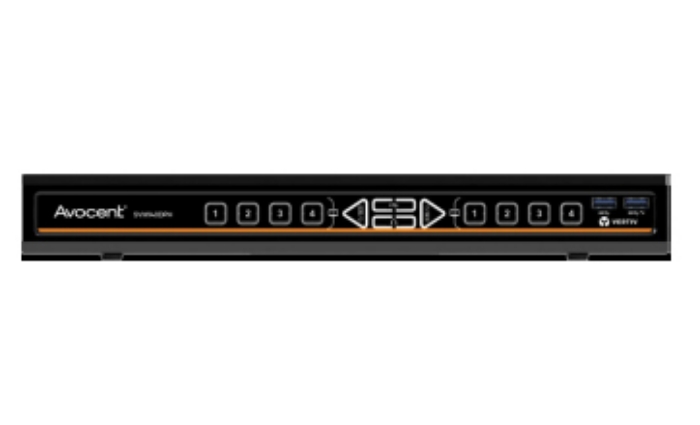

Vertiv SV Universal DP/H Desktop Matrix 2x8 KVM. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Rack capacity: 1U, Certification: FCC B, CE, TUV US, TUV, RCM, VCCI. Power source: AC, Input voltage: 100-240 V. Width: 348 mm, Depth: 127 mm, Height: 43 mm



Teknisk specifikation

Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
HDMI ports quantity	2
DisplayPorts quantity	2
Console USB ports quantity	4
USB connector type	USB Type-A,USB Type-B

HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	30 Hz

Rack capacity	1U
Product colour	Black
Certification	FCC B, CE, TUV US, TUV, RCM, VCCI

Built-in display	No

Power source	AC
Input voltage	100-240 V

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 %
Storage relative humidity (H-H)	0 - 80 %

Width	348 mm
Depth	127 mm
Height	43 mm
Weight	1600 g

Cables included	AC
