Produktbeskrivning

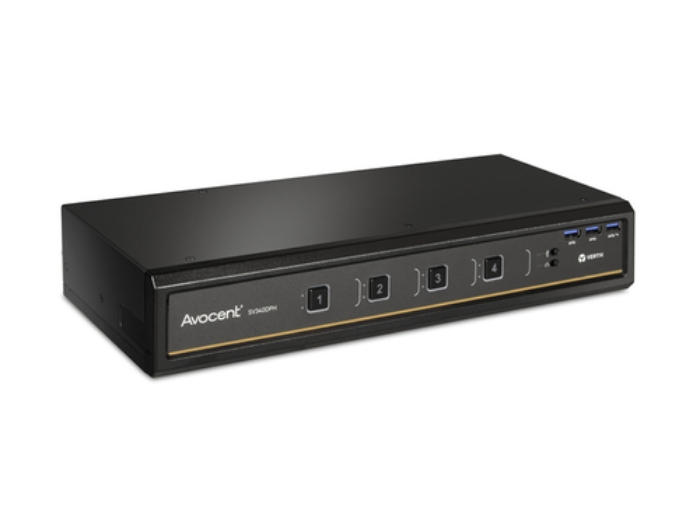

The Vertiv™ Avocent® SwitchView™ Dual head 4 port Desktop KVM switch gives users access to up to 4 computers using a single keyboard, monitor and mouse. It provides the flexibility users need in managing content from multiple computers and makes it easy to copy and paste files between applications. The SV340DPH comes with a universal video port that supports DVI-D, DP or HDMI connections.



Viktiga egenskaper

Vertiv Avocent SV340DPH. Keyboard port type: USB, Mouse port type: USB, Video port type: DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels. Product colour: Black, Certification: CE, RCM, FCC class A, VCCI, TUV US, TUV Canada. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50 - 60 Hz. Width: 348 mm, Depth: 127 mm, Height: 56 mm



Teknisk specifikation

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	10
USB 2.0 Type-B ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	4
Console USB ports quantity	3
Console ports	3.5mm headphone,3.5mm mic,DisplayPort,USB A,USB B
USB connector type	USB Type-A,USB Type-B
Audio connections	Yes
Headphone outputs	5
Number of microphone inputs	5

HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels

Rack mounting	No
Product colour	Black
LED indicators	Yes
Certification	CE, RCM, FCC class A, VCCI, TUV US, TUV Canada

Built-in display	No

Power source	AC
Input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Output voltage	12 V
Output current	2.5 A

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 %

Width	348 mm
Depth	127 mm
Height	56 mm
Weight	1900 g
