Produktbeskrivning

The Avocent ACS 8000 advanced console server offers upgraded and advanced features, that deliver scalable and high-performance solutions for IT administrators. The console server features a dual ARM core processor platform with dual Gigabit Ethernet ports and dual Gigabit fiber ports for redundancy. In addition, there is a sensor port, to connect a variety of sensors for monitoring and logging on the appliance. The serial ports are auto sensing for pin-out and the Avocent ACS 8000 advanced console server also offers robust features to meet the requirements of the demanding data center management applications. Features combine automated discovery tools to ease identification of servers, routers, switches and power devices, connected to any serial port, saving time at initial configuration and installation. To comply with existing data center network access policy, the Avocent ACS 8000 advanced console server provides customizable, multiple access levels for secure management. The console servers provide a complete solution for secure, remote control with advanced console server features, such as enhanced security, data logging and event monitoring. In addition, the Avocent ACS 8000 advanced console server supports network standards, such as Internet Protocol version 6 (IPv6).



Viktiga egenskaper

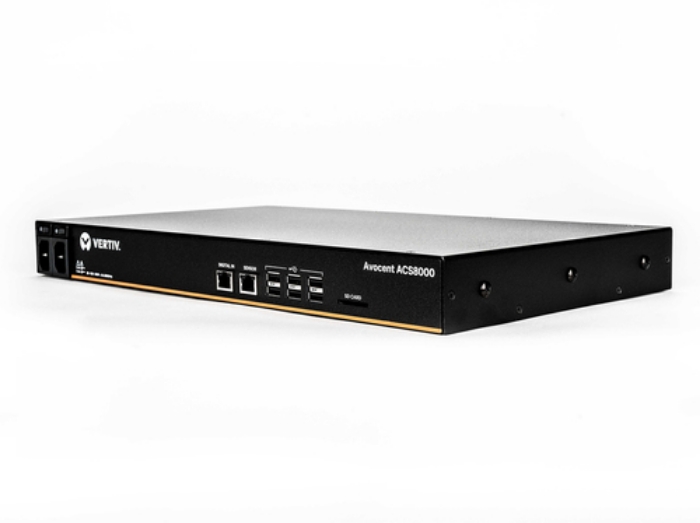

Vertiv Avocent 48-Port ACS 8000 with dual AC Power Supply and Analog Modem - ACS8048MDAC-404. Management protocols: CLI, HTTP/ HTTPS, SNMP. Authentication method: LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP), Security algorithms: 3DES, 128-bit AES, 192-bit AES, 256-bit AES, AES, FIPS 140-2, HTTPS, IPSec, SHA-256, SNMP, SNMPv3,.... Console port: RJ-45, AC outlet types: C13 coupler. Operating system installed: Embedded LINUX. Dimensions (WxDxH): 438.2 x 241.3 x 44.5 mm, Weight: 3.4 kg



Teknisk specifikation

Zero Touch Provisioning (ZTP)	Yes
Rack mounting	Yes
Internal modem	Yes
Temperature sensor	Yes
Web-based management	Yes
Product colour	Black

Management protocols	CLI, HTTP/ HTTPS, SNMP

One-time password (OTP)	Yes
IP address filtering	Yes
Security algorithms	3DES,128-bit AES,192-bit AES,256-bit AES,AES,FIPS 140-2,HTTPS,IPSec,SHA-256,SNMP,SNMPv3,SSH,SSH-2
Authentication method	LOCAL,LDAP,RADIUS,TACACS+ and OneTimePasswords(OTP)

Console port	RJ-45
USB 2.0 ports quantity	8
Serial ports quantity	48
SFP module slots quantity	2
Ethernet LAN (RJ-45) ports	2
AC outlet types	C13 coupler

Operating system installed	Embedded LINUX

Processor family	ARM Cortex-A9
Processor architecture	ARM Cortex-A9
Processor cores	2
Processor frequency	667 MHz

Power source type	AC
AC input voltage	109 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	35 W
Power consumption (typical)	20 W
Input current	0.1 A
Number of power supply units	2

Copper ethernet cabling technology	10BASE-T,100BASE-T,1000BASE-T
Cable types supported	Cat5,Cat5e,Cat6,Cat6+,Cat6a,Cat6e,Cat7,Fiber

Flash memory	16000 MB
RAM capacity	1024 MB
eMMC capacity	16 GB
RAM type	DDR3L

Dimensions (WxDxH)	438.2 x 241.3 x 44.5 mm
Weight	3400 g

Certification	FCC Class A, CE Class A (EU), ICES-003 (Canada), VCCI (Japan), RCM (Australia), Customs Union (CU), KCC (Korea), UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)

Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	-10 - 60 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	20 - 80 %

Safety	UL (USA), cUL (Canada), EN-60950 (EU), CB, Customs Union (CU)
