Produktbeskrivning

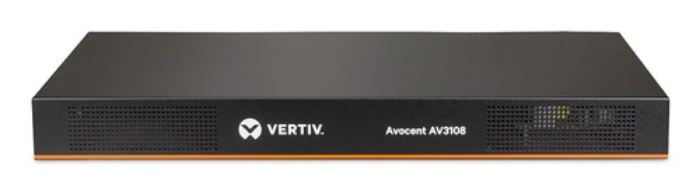

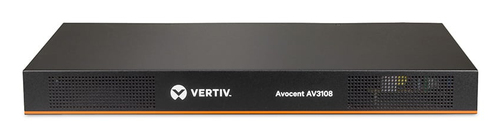

Built for small data centers and remote/branch office environments, the AV 3000 series KVM over IP switch provides consolidated, streamlined access to server resources. Centralize the management of the switches with DSView 4 Management software.



Viktiga egenskaper

Vertiv Avocent AV 3108. Keyboard port type: USB, Mouse port type: USB, Console ports: RJ–45. Cabling technology: 10/100Base-T(X), Security algorithms: 3DES, AES, 128-bit SSL, DES. Maximum resolution: 1680 x 1050 pixels. Product colour: Black, Rack capacity: 1U, Certification: UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI. Power source: AC, Input voltage: 100 - 240 V, AC input frequency: 50/60 Hz



Teknisk specifikation

Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Console ports	RJ–45

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Cabling technology	10/100Base-T(X)
Security algorithms	3DES,AES,128-bit SSL,DES

Maximum resolution	1680 x 1050 pixels
Firmware upgradeable	Yes

Rack mounting	Yes
Rack capacity	1U
Product colour	Black
Certification	UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, C-Tick, BSMI

Built-in display	No

Power source	AC
Input voltage	100 - 240 V
AC input frequency	50/60 Hz
Input current	5 A
Power consumption (typical)	18 W

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C

Width	432 mm
Depth	165 mm
Height	43.7 mm
Weight	1900 g

Cables included	AC
Quick installation guide	Yes
Rack mount kit	Yes
