Produktbeskrivning

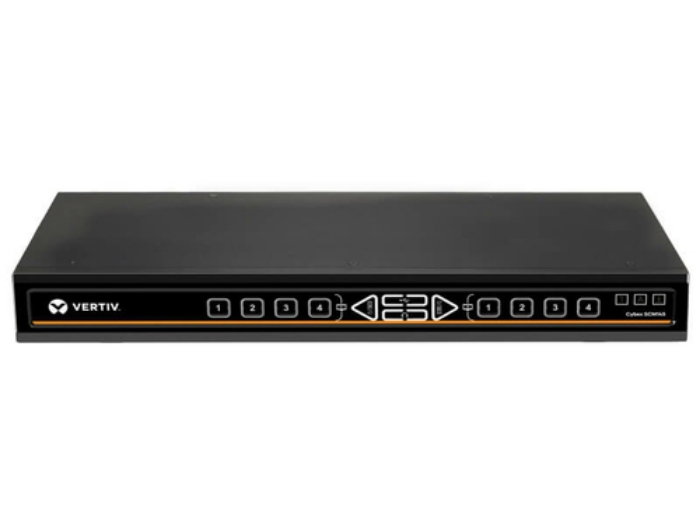

The Vertiv™ Cybex™ SCM145DPH secure desktop matrix KVM eliminates the need for multiple monitors, keyboards, mice and cables. The Cybex™ secure desktop matrix switch provides users flexibility by offering a universal video port, freeze DPP and audio channel capabilities as well as touch screen support. The Cybex SCM145DPH comes with native video support up to UHD 4K @ 60Hz and smart-card (CAC) or biometric readers for authentication on any attached computer.

- Designed for Common Criteria Protection Profile for Peripheral Sharing Device (PSD) v.4.0
- Secure KVM switching allows for instantaneous interaction between two computers from different security classifications
- Cursor Navigation Switching (CNS) seamlessly transitions keyboard and mouse control between computers when pressing the left CTRL key and moving the cursor across screen borders
- Native video supports up to UHD 4K at 60 Hz
- Unidirectional data flow of keyboard, mouse, video, and audio



Viktiga egenskaper

Vertiv SCM145DPH-400. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 60 Hz. Product colour: Black, Certification: FCC class A, CE, TUV US, TUV Canada, RCM, VCCI. Power source: AC, Input voltage: 100 - 240 V. Width: 348 mm, Depth: 127 mm, Height: 43 mm



Teknisk specifikation

Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
USB 2.0 Type-B ports quantity	2
Console ports	3.5mm headphone,DisplayPort,HDMI,USB A
Console DisplayPorts ports quantity	2
USB 2.0 Type-A hub ports quantity	3
Headphone outputs	1

HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz

Product colour	Black
Certification	FCC class A, CE, TUV US, TUV Canada, RCM, VCCI

Power source	AC
Input voltage	100 - 240 V

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80 %

Width	348 mm
Depth	127 mm
Height	43 mm
Weight	1500 g
