Produktbeskrivning

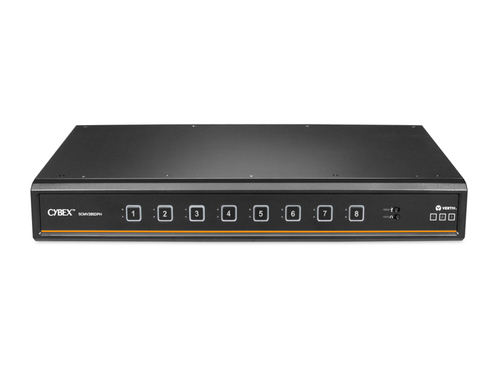

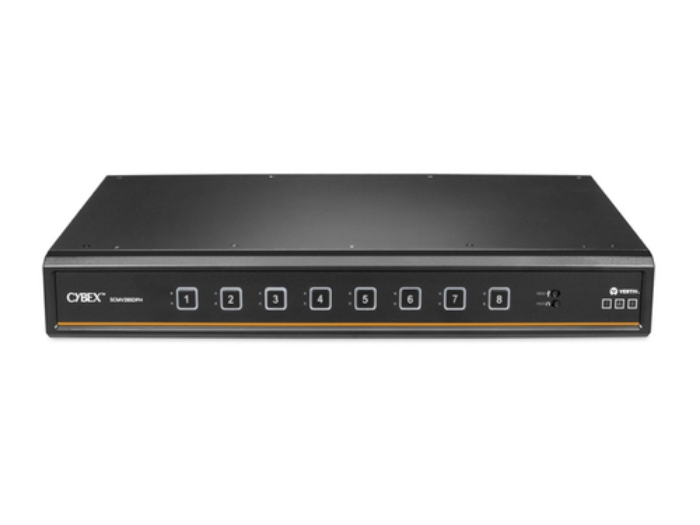

The Vertiv™ Cybex™ Secure MultiViewer KVM continues to provide the KVM solution required in accessing both classified and non-classified data. Through an all new, universal video port connector, the Cybex™ Secure MultiViewer supports a mixture of DP, HDMI, and DVI-D video connections without needing adapters. The Cybex™ Secure MultiViewer can be used in either a single or dual display scenario with up to 16 computers on a single screen and features such as tiling, windowing, and touch screen and features as tile, scale, picture-in-picture (PIP), or custom layout.
- View information on a single display from multiple, isolated computers
- Dual head display capabilities give the user visibility to computers across two displays in duplicate or extended screen mode
- Provides flexible multiple screen layout options for users; Tile, Scale, PIP or custom
- Block unauthorized USB devices while allowing secure switching of smart card and biometric devices between computers
- Universal video connectors to support DP, HDMI, and DVI-D without adapters
- Tamper-evident holographic labels to ensure hardware hasn’t been compromised
- Enhances ability to multitask by keeping multiple critical systems in the user’s field of vision
- Keyboard lock status indication on front of MultiViewer switch
Viktiga egenskaper
Vertiv SCMV285DPH-400. Keyboard port type: USB, Mouse port type: USB, Video port type: HDMI/DisplayPort. HD type: 4K Ultra HD, Maximum resolution: 3840 x 2160 pixels, Video bandwidth: 30 Hz. Product colour: Black, Certification: FCC Class A, CE, TUV US, TUV Canada, RCM, VCCI. Power source: AC, Input voltage: 100 - 240 V. Width: 442 mm, Depth: 183 mm, Height: 66 mm
Teknisk specifikation
Ports & interfaces
| Keyboard port type | USB |
|---|
| Mouse port type | USB |
|---|
| Video port type | HDMI/DisplayPort |
|---|
| USB 2.0 Type-B ports quantity | 2 |
|---|
| Console ports | DisplayPort,HDMI,USB A |
|---|
| Console HDMI ports quantity | 2 |
|---|
| USB 2.0 Type-A hub ports quantity | 5 |
|---|
| Headphone outputs | 1 |
|---|
Performance
| HD type | 4K Ultra HD |
|---|
| Maximum resolution | 3840 x 2160 pixels |
|---|
| Video bandwidth | 30 Hz |
|---|
Design
| Product colour | Black |
|---|
| Certification | FCC Class A, CE, TUV US, TUV Canada, RCM, VCCI |
|---|
Power
| Power source | AC |
|---|
| Input voltage | 100 - 240 V |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -20 - 80 °C |
|---|
| Operating relative humidity (H-H) | 0 - 80 % |
|---|
Weight & dimensions
| Width | 442 mm |
|---|
| Depth | 183 mm |
|---|
| Height | 66 mm |
|---|
| Weight | 3700 g |
|---|
