Produktbeskrivning

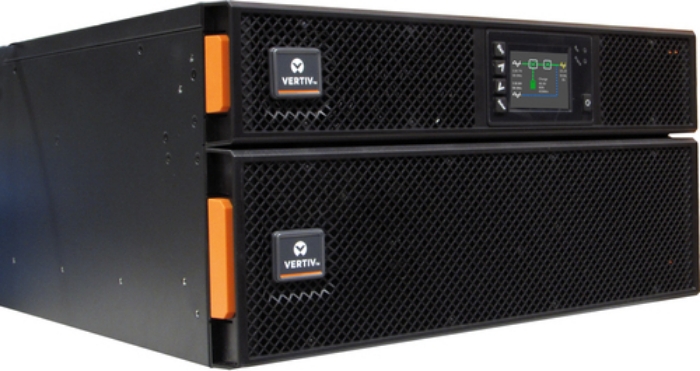

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 5kVA/5kW online double conversion UPS offers continuous power conditioning in centralized and edge locations. With unity power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 230V in/ 230 out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display. It comes with a 5-year warranty (3-year factory warranty plus 2-year extended warranty). This promotion is subject to the Distributor’s product availability and is only available while product stocks last. Vertiv reserves the right to provide a 1-month notice to terminate the offer. This offer is not available in conjunction with any other offer/discount.



Viktiga egenskaper

Vertiv Liebert GXT5 Double Online Conversion UPS -5000VA/5000W| 230V| With Rackmount Kit and Intellislot RDU101 Communication Card| GXT5-5000IRT5UXLN. UPS topology: Double-conversion (Online), Output power capacity: 5 kVA, Output power: 5000 W. AC outlet types: C13 coupler, C19 coupler, IEC 320, Terminal, Power plug: Terminal, AC outlets quantity: 8 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 5U. Compliance certificates: RoHS, Certification: CE, EMI/EMC/C-Tick EMC, ESD



Teknisk specifikation

UPS topology	Double-conversion (Online)
Output power capacity	5 kVA
Output power	5000 W
Waveform	Pure sine
Input operation voltage (min)	176 V
Input operation voltage (max)	288 V
Input frequency	40 - 70 Hz
Output operation voltage (min)	230 V
Output operation voltage (max)	240 V
Output frequency	50 Hz
Output voltage regulation	3 %
Response time	0 ms
Number of input phases	1
Number of output phases	1
Single-phase input voltage supported	200,208,220,230,240 V
Efficiency	94 %
Efficiency (On-line mode)	94 %
Power factor	1
Input power factor	0.99
Output power factor	1
Emergency Power Off (EPO)	Yes
Overload capacity (5 minute)	125 %
Overload capacity (1 minute)	150 %
Noise level	55 dB
Power protection features	Overload
Audible alarm(s)	Yes

AC outlet types	C13 coupler,C19 coupler,IEC 320,Terminal
Power plug	Terminal
AC outlets quantity	8 AC outlet(s)
USB port	Yes
RS-232 ports	1
Serial ports quantity	1

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	9 Ah
Battery voltage	12 V
Number of batteries supported	16
Typical backup time at full load	7 min
Typical backup time at half load	18.5 min
Battery recharge time(90%)	5 h
Hot-swap battery	Yes

Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	5U
Cooling type	Active
Display type	LCD
International Protection (IP) code	IP20
Safety	IEC62040-1:2008
Certification	CE, EMI/EMC/C-Tick EMC, ESD

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Storage relative humidity (H-H)	0 - 95 %
Operating altitude	0 - 3000 m

Compliance certificates	RoHS

Width	430 mm
Depth	630 mm
Height	217 mm
Weight	70800 g
Package width	646 mm
Package depth	816 mm
Package height	520 mm
Package weight	89000 g

Harmonized System (HS) code	85078000

Battery type	VRLA
Output voltage	230 V
