Produktbeskrivning

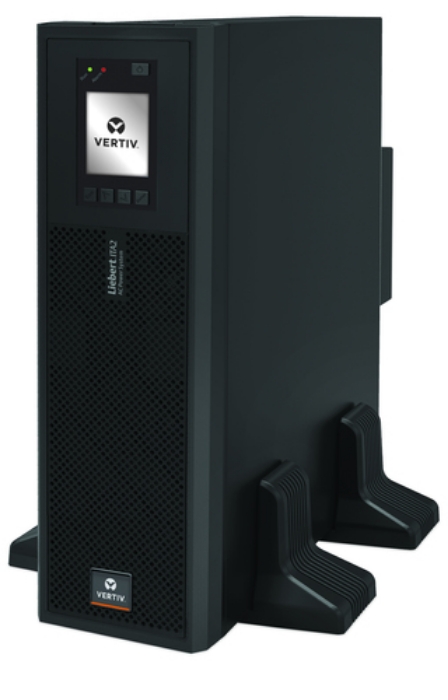

With a unity output power factor, Liebert® ITA2 perfectly matches the needs of modern IT loads, and with its wide input voltage and frequency range it effectively reduces the need for battery intervention, thus prolonging battery life. Liebert® ITA2 offers enhanced flexibility with a wide range of accessories for both stand-alone and rack-mount installations. When rack mounted, it allows to install up to 20 kVA in just 3U of space, achieving a remarkable space saving.



Viktiga egenskaper

Vertiv Liebert ITA2 20kVA Rack 0MIN autonomy. UPS topology: Double-conversion (Online), Output power capacity: 20 kVA, Output power: 20000 W. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Certification: EN/IEC/AS 62040-2, VFI-SS-111, EN/IEC/AS 62040-1. Width: 430 mm, Depth: 500 mm, Height: 130 mm. Bypass: Bypass voltage tolerance (%) 20 - -40 Bypass frequency tolerance (%) ±20 (±10 selectable)



Teknisk specifikation

UPS topology	Double-conversion (Online)
Output power capacity	20 kVA
Output power	20000 W
Input operation voltage (min)	173 V
Input operation voltage (max)	498 V
Input frequency	40/70 Hz
Output frequency regulation	50/60 Hz
Maximum current	13 A
Number of input phases	3
Efficiency	96.2 %
Input power factor	0.99
Overload capacity (1 minute)	150 %
Output voltage Total Harmonic Distortion (THD)	2 %
Input current Total Harmonic Distortion (THD)	3 %
Noise level	58 dB

Form factor	Rackmount/Tower
Product colour	Black
Rack capacity	3U
International Protection (IP) code	IP20
Certification	EN/IEC/AS 62040-2, VFI-SS-111, EN/IEC/AS 62040-1

Width	430 mm
Depth	500 mm
Height	130 mm
Weight	23000 g

Bypass	Bypass voltage tolerance (%) 20 - -40 Bypass frequency tolerance (%) ±20 (±10 selectable)
