Produktbeskrivning

Knürr DI-STRIP Basic Rack PDUsBasic Rack PDUs are the right answer for data center users selecting robust, economical and flexible rack power solutions. DI-STRIP rack PDUs meet a broad range of power distribution requirements for IT and other applications. Designed especially to handle the growing number of electronic components that can be housed within network cabinets and server racks, the space saving product line is available in a range of configurations.



Viktiga egenskaper

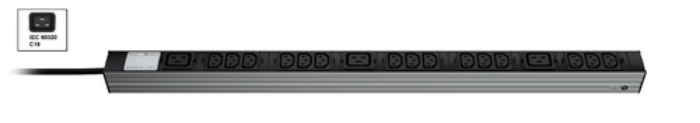

Vertiv Knürr DIS Rack PDU, IEC320, 0U, input IEC 60320 C19 230V 16A, outputs (15)C13 (3)C19. PDU types: Basic, Rack capacity: 1U, Mounting: Vertical. AC outlets quantity: 18 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C19 coupler. Cable length: 2.5 m, Cable type: H05VV-F 3G 1.5 mm2. Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50 Hz. Compliance certificates: RoHS, Certification: - CE label in accordance with Low Voltage Directive 2006/95/EC - EMC Directive 2004/108/EC -...



Teknisk specifikation

PDU types	Basic
Rack capacity	1U
Mounting	Vertical
Housing material	Plastic,Steel,Zinc
Product colour	Black,Grey

AC outlets quantity	18 AC outlet(s)
Power plug	C19 coupler
AC outlet types	C13 coupler,C19 coupler
Output connections	15 x C13 & 3 x C19

LED indicators	No
Cable length	2.5 m
Cable type	H05VV-F 3G 1.5 mm2
Certification	CE, RoHS, BV-BG certificate, CSA

Nominal input voltage	230 V
AC input frequency	50 Hz
Maximum current	16 A
Load capacity	3600 VA

Width	44.4 mm
Depth	783 mm
Height	45.5 mm
Weight	1660 g

Package width	60 mm
Package depth	1000 mm
Package height	1030 mm

Operating temperature (T-T)	0 - 50 °C

Compliance certificates	RoHS
