Produktbeskrivning

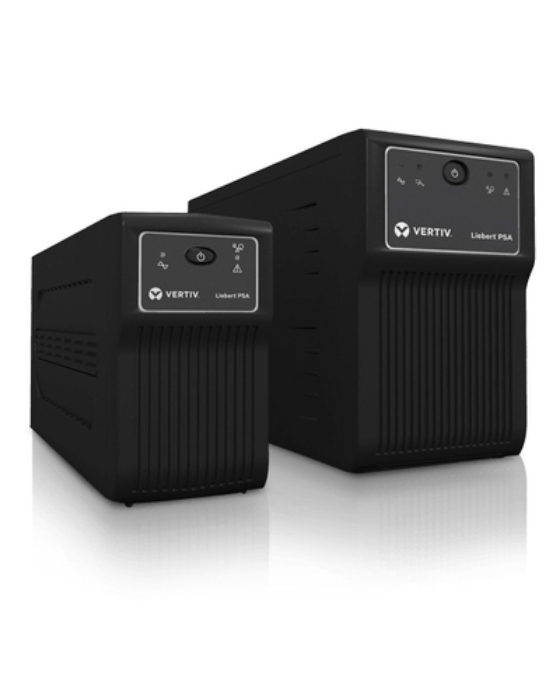

Liebert PSA 650VA is a compact line-interactive UPS that offers cost-effective, full featured power protection for small office computer and electronic equipment. Liebert PSA mixes unique features and extraordinary performance. Designed with simple controls for easy operation, it provides up to five minutes of back-up time at full load: more than enough time to save work in process and shut down your system.



Viktiga egenskaper

Vertiv Liebert PSA 650VA. UPS topology: Line-Interactive, Output power capacity: 0.65 kVA, Output power: 390 W. AC outlet types: C13 coupler, IEC 320, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Cooling type: Active. Compliance certificates: RoHS, Certification: CE



Teknisk specifikation

UPS topology	Line-Interactive
Output power capacity	0.65 kVA
Output power	390 W
Waveform	Stepwise
Input operation voltage (min)	160 V
Input operation voltage (max)	287 V
Input frequency	50/60 Hz
Output frequency	50/60 Hz
Response time	6 ms
Number of input phases	1
Number of output phases	1
Output power factor	0.6
Emergency Power Off (EPO)	No
Audible alarm(s)	Yes

AC outlet types	C13 coupler,IEC 320
Power plug	C14 coupler
AC outlets quantity	4 AC outlet(s)
USB port	Yes
USB 2.0 ports quantity	1
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2

Battery technology	Sealed Lead Acid (VRLA)
Battery capacity	7 Ah
Battery voltage	12 V
Number of batteries supported	1
Typical backup time at full load	3 min
Typical backup time at half load	10 min
Battery recharge time	6 h

Form factor	Tower
Product colour	Black
Cooling type	Active
LED indicators	Yes
International Protection (IP) code	IP20
Safety	IEC/EN/AS 62040-1-1
Certification	CE

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 40 °C
Operating relative humidity (H-H)	0 - 90 %
Storage relative humidity (H-H)	0 - 90 %
Operating altitude	0 - 3000 m

Compliance certificates	RoHS

Width	95 mm
Depth	356 mm
Height	171 mm
Weight	5900 g
Package width	177 mm
Package depth	443 mm
Package height	253 mm
Package weight	6300 g

Harmonized System (HS) code	85078000

Battery type	VRLA
Output connections	4 x IEC 320 C13
Dimensions (WxDxH)	95 x 356 x 171 mm
Nominal output voltage	230 V
