Produktbeskrivning

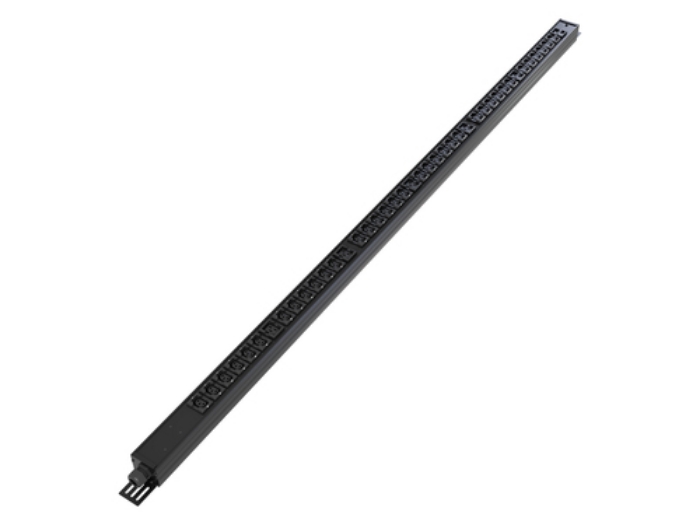

The Vertiv PowerGo EP0G80A2 is a basic rack power distribution unit (rPDU) that delivers reliable power to critical IT equipment within a rack or cabinet. This three-phase unit has a 230/400V WYE input voltage and 16A current capacity that supports up to 11kVA of load capacity with 3P+N+E (IP44) plug form. It also features a total of 42 receptacles, 36 Manual locking IEC C13 and 6 Manual locking IEC C19, making it versatile for diverse device connections. It has a 0U, vertical rackmount configuration, allowing seamless integration into standard racks. It’s equipped with a 3-meter power cable and supports a maximum operating temperature of up to 45°C, adapting to demanding environments. It is CE-Marked, FCC-Marked, complies with IEC 62368-1, and is RoHS compliant. Every unit is 100% tested for reliability and functionality and has a 1-year warranty, offering both efficiency and peace of mind for your power distribution needs.
Viktiga egenskaper
Vertiv PowerGo Basic rPDU | 0U | 230/400V WYE| 16A | 11kW | (36) Manual Lock IEC C13, (6) Manual Lock IEC C19 | 50/60Hz | 3P+N+E (IP44) | EP0G80A2. PDU types: Basic, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 30 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Nominal input voltage: 230 - 400 V, Maximum current: 16 A, Maximum power: 11000 W. Certification: CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55035, ROHS (EMC...
Teknisk specifikation
Design
| PDU types | Basic |
|---|
| Type | Three-phase |
|---|
| Rack capacity | 0U |
|---|
| Mounting | Vertical |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 30 AC outlet(s) |
|---|
| Power plug | IEC 60309 |
|---|
| AC outlet types | C13 coupler,C19 coupler |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Features
| Cable length | 3 m |
|---|
| Certification | CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55035, ROHS (EMC only),S-Mark |
|---|
Power
| Nominal input voltage | 230 - 400 V |
|---|
| Maximum current | 16 A |
|---|
| Maximum power | 11000 W |
|---|
Weight & dimensions
| Width | 66 mm |
|---|
| Depth | 58 mm |
|---|
| Height | 1950 mm |
|---|
| Weight | 8000 g |
|---|
Packaging content
| Cables included | Power |
|---|
Logistics data
| Country of origin | China |
|---|
