Produktbeskrivning

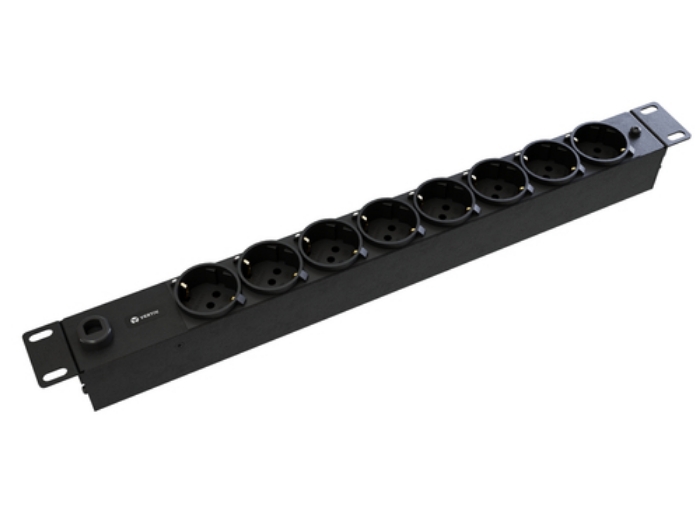

The Vertiv PowerGo EP0G81A1 is a basic, standard, rack power distribution unit (rPDU) that delivers reliable power to critical IT equipment within a rack or cabinet. This single-phase unit has a 230V input voltage and 16A current capacity that supports up to 3.6kVA of load capacity with German Schuko input. It also features 8 German Schuko receptacles, with a maximum output of 16A, making it versatile for diverse device connections. It has a 1U, horizontal rackmount configuration, and compact design, allowing seamless integration into standard racks. It’s equipped with a 3-meter power cable and supports a maximum operating temperature of 45°C, ensuring adaptability to demanding environments. The unit is CE-Marked, FCC-Marked, complies with IEC 62368-1, and is RoHS compliant. Every unit is 100% tested for reliability and functionality and has a 1-year warranty, offering both efficiency and peace of mind for your power distribution needs.



Viktiga egenskaper

Vertiv PowerGo Basic (Standard) Rack Power Distribution Unit | rPDU | 1U | 230V | 16A |3.6kW | 50/60Hz | 8 German Schuko inlet | Horizontal. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 8 AC outlet(s), AC outlet types: Type F, Power plug: Type F. Cable length: 3 m. Nominal input voltage: 230 V, Maximum current: 16 A, AC input frequency: 50/60 Hz. Certification: CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55038, ROHS (EMC...



Teknisk specifikation

PDU types	Basic
Type	Single-phase
Rack capacity	1U
Mounting	Horizontal
Product colour	Black

AC outlets quantity	8 AC outlet(s)
Power plug	Type F
AC outlet types	Type F

Cable length	3 m
Certification	CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55038, ROHS (EMC only),S-Mark

Nominal input voltage	230 V
AC input frequency	50/60 Hz
Maximum current	16 A
Maximum power	3600 W

Width	44 mm
Depth	435 mm
Height	44.4 mm
Weight	1550 g

Country of origin	China
