Produktbeskrivning

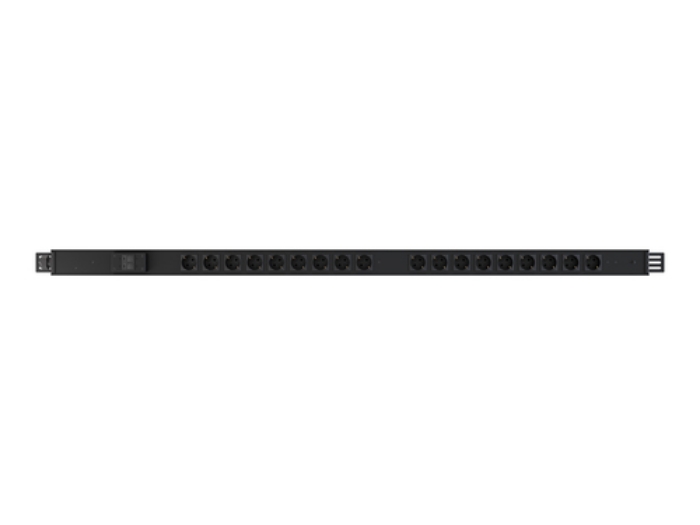

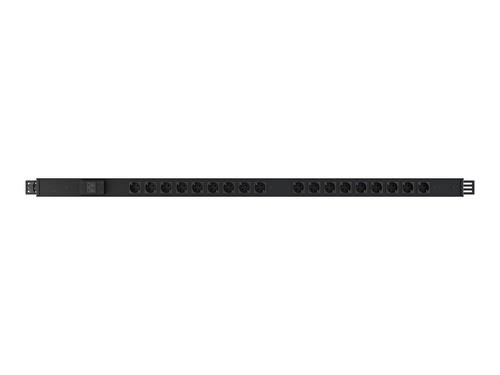

The Vertiv PowerGo EP0G90A1 is a basic rack power distribution unit (rPDU) that delivers reliable power to critical IT equipment within a rack or cabinet. This single-phase unit has a 230V input voltage and 32A current capacity that supports up to 7.3kVA of load capacity with 1P+N+E (IP44) plug form. It also features 18 German Schuko outlets making it versatile for diverse device connections. It has a 0U, vertical rackmount configuration, allowing seamless integration into standard racks. It’s equipped with a 3-meter power cable and supports a maximum operating temperature of up to 45°C, adapting to demanding environments. It is CE-Marked, FCC-Marked, complies with IEC 62368-1, and is RoHS compliant. Every unit is 100% tested for reliability and functionality and has a 1-year warranty, offering both efficiency and peace of mind for your power distribution needs.



Viktiga egenskaper

Vertiv PowerGo Basic rPDU | 0U | Vertical | 230V| 32A | 7.3kW | (18) German Schuko Outlets | 50/60Hz | 1P+N+E (IP44) 1-Year Warranty | EP0G90A1. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 18 AC outlet(s), AC outlet types: Type F, Power plug: IEC 60309. Cable length: 3 m. Nominal input voltage: 230 V, Maximum current: 32 A, Maximum power: 7300 W. Certification: CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55035, ROHS (EMC...



Teknisk specifikation

PDU types	Basic
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black

AC outlets quantity	18 AC outlet(s)
Power plug	IEC 60309
AC outlet types	Type F
Ethernet LAN (RJ-45) ports	1

Cable length	3 m
Certification	CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55035, ROHS (EMC only),S-Mark

Nominal input voltage	230 V
Maximum current	32 A
Maximum power	7300 W

Width	66 mm
Depth	58 mm
Height	1500 mm
Weight	6300 g

Cables included	Power

Country of origin	China
