Produktbeskrivning

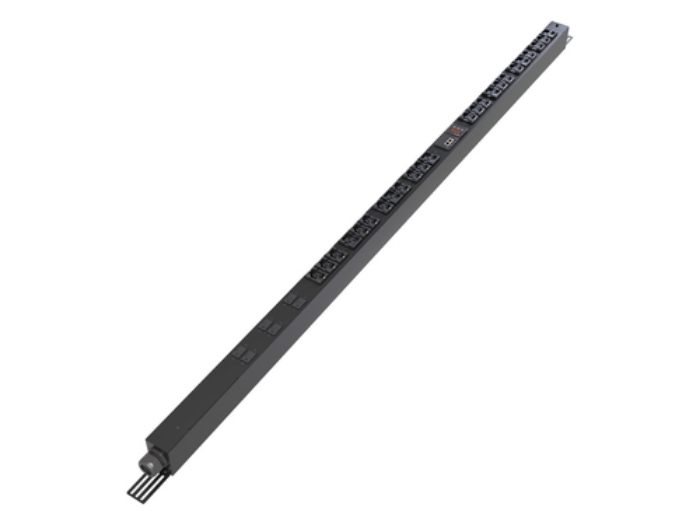

The Vertiv PowerGo EP5G90A1 is a switched rack power distribution unit (rPDU) with a high-visibility LED display that delivers an individual outlet level control and a comprehensive view of input power usage via remote network access. This three-phase unit supports up to 22kVA load capacity with 230/400V WYE and 32A input via the 3P+N+E (IP44) plug providing reliable power distribution to critical IT equipment. It includes 18 Manual locking IEC C13 and 6 Manual locking IEC C19 outlets, for versatile connectivity. It also features Fault-Tolerant Daisy Chaining with RSTP that helps ensure data is reported even when a break in the network chain occurs. It has a 0U, vertical rackmount configuration, allowing seamless integration into standard racks. It supports a maximum operating temperature of 45°C, ensuring adaptability to demanding environments. It is CE-Marked, FCC-Marked, complies with IEC 62368-1, and is RoHS compliant. Every unit is 100% tested and has a 1-year warranty, offering both efficiency and peace of mind.
Viktiga egenskaper
Vertiv PowerGo Switched rPDU | 0U | 230/400V WYE | 32A | (18) Manual Lock IEC C13, (6) Manual Lock IEC C19 | 22kW | 50/60Hz | 3P+N+E (IP44) | EP5G90A0. PDU types: Switched, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Management platform: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog,.... Nominal input voltage: 230 - 400 V, Maximum current: 32 A, Maximum power: 22000 W
Teknisk specifikation
Design
| PDU types | Switched |
|---|
| Type | Three-phase |
|---|
| Rack capacity | 0U |
|---|
| Mounting | Vertical |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 24 AC outlet(s) |
|---|
| Power plug | IEC 60309 |
|---|
| AC outlet types | C13 coupler,C19 coupler |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Features
| Cable length | 3 m |
|---|
| Certification | CE Marked, FCC Marked, Complies with IEC 62368-1, Complies with EN 55032 and EN 55040, ROHS (EMC only),S-Mark |
|---|
Management features
| Management platform | DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP |
|---|
Power
| Nominal input voltage | 230 - 400 V |
|---|
| Maximum current | 32 A |
|---|
| Maximum power | 22000 W |
|---|
Weight & dimensions
| Width | 58 mm |
|---|
| Depth | 77 mm |
|---|
| Height | 1829 mm |
|---|
| Weight | 13000 g |
|---|
Packaging content
| Cables included | Power |
|---|
Logistics data
| Country of origin | China |
|---|
