Produktbeskrivning

Overview

Upgradeable Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
Fault-Tolerant
Every unit is 100% tested for reliability and functionality. Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
Daisy-chain up to 50 devices on a single IP address and reduce deployment time with self-configuration of downstream devices.



Viktiga egenskaper

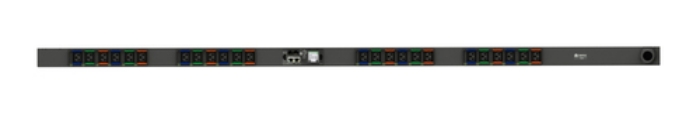

Vertiv MGR5MGB0-24CF13-2PS56B2A10-S-A. PDU types: Monitored, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Cable length: 3 m. Monitoring: Current, Power, Voltage, Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog,.... Nominal input voltage: 200 - 415 V, Maximum current: 16 A, AC input frequency: 50/60 Hz



Teknisk specifikation

PDU types	Monitored
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Display	LCD

AC outlets quantity	24 AC outlet(s)
AC outlet types	C13 coupler,C19 coupler
Ethernet LAN (RJ-45) ports	2

Reset button	Yes
Daisy chain	Yes
Cable length	3 m

Monitoring	Current,Power,Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Nominal input voltage	200 - 415 V
AC input frequency	50/60 Hz
Maximum current	16 A
Nominal output voltage	230 V
Load capacity	11000 VA
Maximum power	11000 W
Power protection features	Over current

Width	51 mm
Depth	66 mm
Height	1683 mm
Weight	8160 g

Compliance certificates	CE,UKCA,RoHS,RCM,China RoHS
