Produktbeskrivning

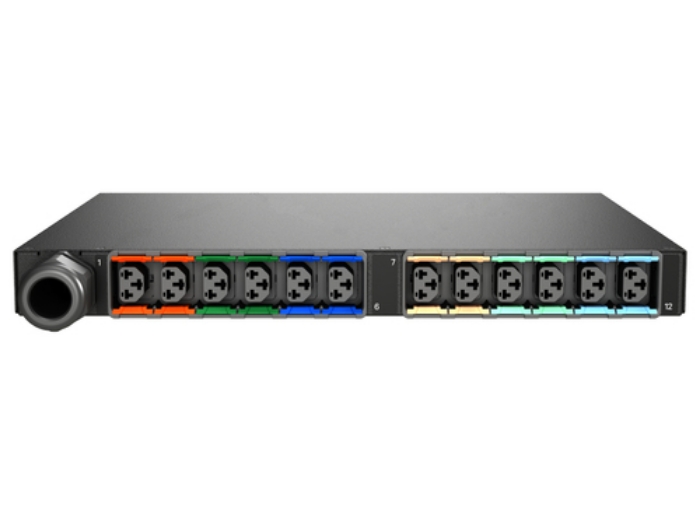

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.



Viktiga egenskaper

Vertiv Geist MGR5M1R6-12CF13-3PS56B2H10-S. PDU types: Monitored, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Monitoring: Current, Power, Voltage, Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog,.... Nominal input voltage: 200-240/346-415 V, Maximum current: 32 A, AC input frequency: 50/60 Hz



Teknisk specifikation

PDU types	Monitored
Type	Three-phase
Rack capacity	0U
Mounting	Horizontal
Product colour	Black
Display	LED

AC outlets quantity	12 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1

Reset button	Yes
Cable length	3 m

Monitoring	Current,Power,Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Nominal input voltage	200-240/346-415 V
AC input frequency	50/60 Hz
Maximum current	32 A
Load capacity	230 VA
Power protection features	Over current

Width	432 mm
Depth	305 mm
Height	44 mm

Package weight	8160 g

Operating temperature (T-T)	0 - 60 °C
