Produktbeskrivning

The Vertiv Geist VP7UV0A0 is a vertical rack power distribution unit with a universal input that supports common AC power configurations. It has (18) U-Lock C13 outlets and (12) U-Lock C19 receptacles providing 22kW power capacity. This unit can accommodate input power ranging from 32A-63A and 208V-415V in both single-phase and three-phase configurations. It helps simplify the procurement process of rPDUs since users can use a single model to work with different power sources. To define the input power configuration, choose the right Facility Side Cable (sold separately) to install the Vertiv Geist UPDU in your network system. The Vertiv-patented U-Lock outlets help secure plug connections and lessen the risk of downtime caused by accidental cord disconnection.

REDUNDANT POWER-SHARING

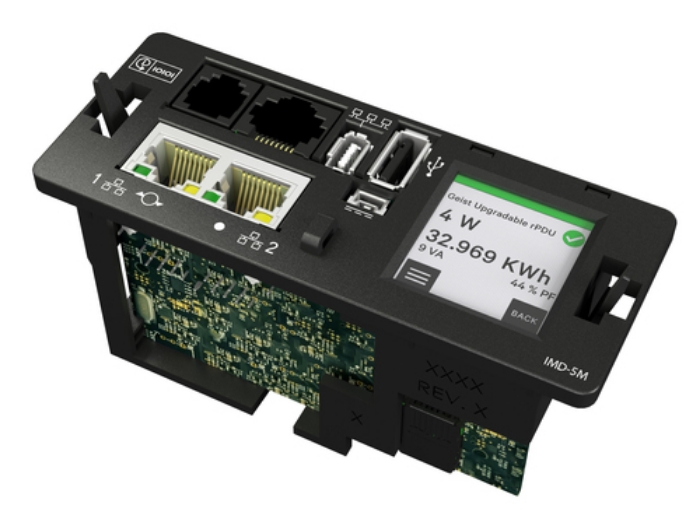

The next generation Interchangeable Monitoring Device features a redundant power-sharing port that allows users to connect two IMDs in the rack and provide backup power to the IMD in case of power loss.

HIGH-VISIBILITY DISPLAY
This smart PDU is integrated with the next-generation rPDU IMD that displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation.

ENHANCED SECURITY
Includes security enhancements that feature secure boot utilizing a hardware-based trust anchor to help ensure that data and operations are protected.

INDUSTRY CERTIFIED (UL, CE, TAA, RoHS)
Each rack mount PDU is Dual Listed (UL/CE), TAA-Compliant, and RoHS certified. It undergoes individual testing for functionality and reliability to ensure your network is powered by a reliable smart power strip. The unit comes with a 3-year warranty that can be extended to 5 years if registered within 120 days of purchase.



Viktiga egenskaper

Vertiv Geist VP7UV0A0. PDU types: Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 30 AC outlet(s), AC outlet types: C13 coupler, C19 coupler. Monitoring: Current, Power, Voltage, Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+. Nominal input voltage: 230/415 V, Maximum current: 63 A, AC input frequency: 50/60 Hz. Compliance certificates: RoHS, Trade Agreements Act (TAA), China RoHS, Certification: UL & c-UL Listed 60950, CE Marked, Complies with EN 55032 and EN 55024, Complies with IEC 60950-1...



Teknisk specifikation

PDU types	Switched
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Display	LCD

AC outlets quantity	30 AC outlet(s)
AC outlet types	C13 coupler,C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1

Certification	UL & c-UL Listed 60950, CE Marked, Complies with EN 55032 and EN 55024, Complies with IEC 60950-1 (CB Certificate Available), RCM Mark (EMC Only), FCC Part 15 Class A Conformance

Monitoring	Current,Power,Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+

Nominal input voltage	230/415 V
AC input frequency	50/60 Hz
Maximum current	63 A
Output voltage	240 V
Maximum power	22000 W

Width	50.8 mm
Depth	66 mm
Height	1829 mm
Weight	11340 g

Compliance certificates	RoHS,Trade Agreements Act (TAA),China RoHS

Country of origin	United States
