Produktbeskrivning

Upgradeable Switched Outlet Level Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. With the Geist Upgradeable hot-swap technology, users may easily update the rPDU technology with the addition of the appropriate Interchangeable Monitoring Device (IMD) as business needs change.



Viktiga egenskaper

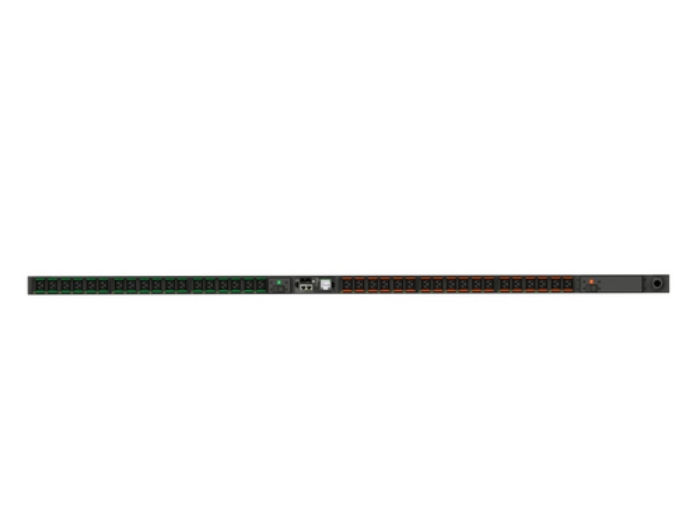

Vertiv Geist MGU5MGW1-36CF13-3PS6B2A10-S. PDU types: Switched, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 36 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3.05 m. Monitoring: Current, Power, Voltage, Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog,.... Nominal input voltage: 200-240 V, Maximum current: 32 A, AC input frequency: 50/60 Hz



Teknisk specifikation

PDU types	Switched
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Display	LCD
On/off switch	No

AC outlets quantity	36 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1

Reset button	Yes
Cable length	3.05 m
Certification	CE Marked UKCA Marked Complies with IEC 62368-1 (DOC Available) Complies with EN 55032 and EN 55035 RoHS Compliant Cم Mark RCM Mark (EMC Only)

Monitoring	Current,Power,Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Nominal input voltage	200-240 V
AC input frequency	50/60 Hz
Maximum current	32 A
Nominal output voltage	32 V
Load capacity	230 VA
Power protection features	Over current

Width	51 mm
Depth	66 mm
Height	1778 mm

Package weight	9070 g

Operating temperature (T-T)	10 - 45 °C
