Produktbeskrivning

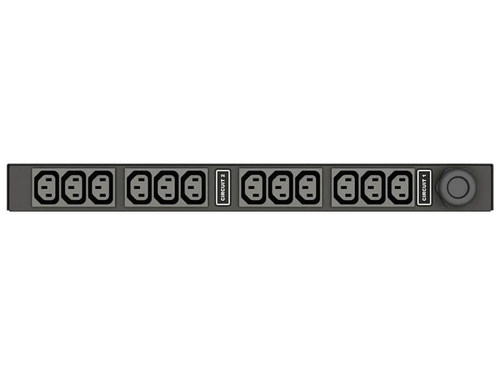

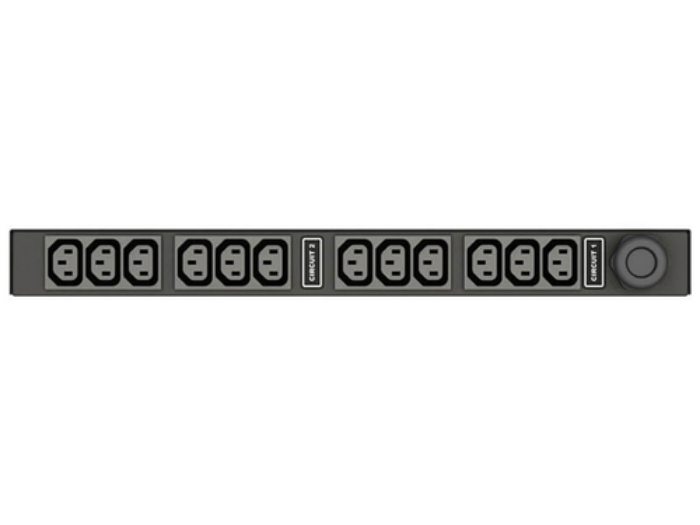

Vertiv™ Geist™ Basic rack PDUs (rPDU) provide reliable power distribution to critical IT equipment within a rack or cabinet. Basic rPDUs are available in a variety of electrical and receptacle configurations. Every unit is 100% tested for reliability and functionality.

- Reliable power distribution to critical IT equipment.
- Every unit is 100% tested for reliability and functionality to ensure units function as designed.
- North American units are UL listed in accordance with common data center and insurance provider requirements.
- Standard three-year warranty, upgraded to five years with product registration.
- Save time and money by pre-integrating Vertiv Geist rPDUs with the VR Rack. Contact your local sales representative to get started.
- Available in vertical and horizontal rackmount form factors.
- Flexibility to meet a broad range of requirements, with a variety of electrical and receptacle configurations available.
- Simple and quick installation in all standard racks or cabinets with included mounting brackets.
- TAA compliant.



Viktiga egenskaper

Vertiv Geist Basic. PDU types: Basic, Rack capacity: 1U, Type: Single-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, Power plug: IEC 60309. Cable length: 3 m. Nominal input voltage: 200-240 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS



Teknisk specifikation

PDU types	Basic
Type	Single-phase
Rack capacity	1U
Mounting	Horizontal
Product colour	Black

AC outlets quantity	12 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler

Cable length	3 m

Nominal input voltage	200-240 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Output voltage	230 V
Maximum power	7300 W

Width	432 mm
Depth	165 mm
Height	44 mm

Package weight	3630 g

Operating temperature (T-T)	10 - 45 °C

Compliance certificates	RoHS
