Produktbeskrivning

OVERVIEW

Upgradeable Switched Unit Level Monitored EC rPDUs provide reliable power distribution to critical IT equipment while delivering individual outlet level control and a comprehensive view of input power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

Remotely reboot outlets to power cycle unresponsive IT equipment or increase runtime of critical equipment upon power failure with outlet-level control. Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime. Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs. Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app.



Viktiga egenskaper

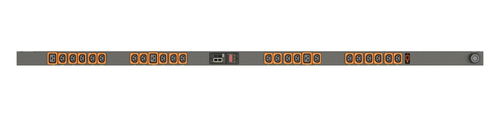

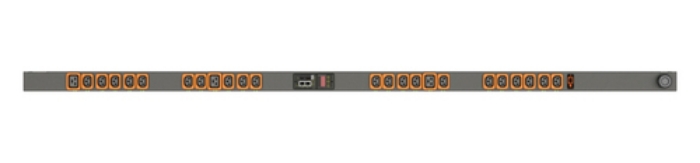

Vertiv Geist GS30007L. PDU types: Monitored, Switched, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Monitoring: Current, Power, Voltage, Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+. Nominal input voltage: 200-240 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz



Teknisk specifikation

PDU types	Monitored,Switched
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Display	LED

AC outlets quantity	24 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler
Serial ports quantity	2
Ethernet LAN (RJ-45) ports	2

Reset button	Yes
Daisy chain	Yes
LED indicators	Yes
Cable length	3 m
Certification	CE, EN55032, EN55024, IEC 60950-1, RCM

Monitoring	Current,Power,Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+

Nominal input voltage	200-240 V
AC input frequency	50 - 60 Hz
Maximum current	16 A
Nominal output voltage	230 V
Maximum power	3600 W

Width	1683 mm
Depth	66 mm
Height	51 mm
Weight	8160 g

Compliance certificates	RoHS
