Produktbeskrivning

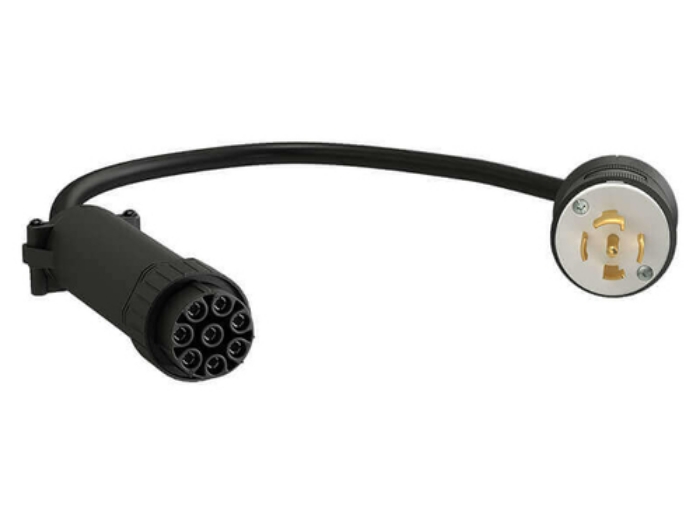

The Vertiv Geist FSC, Facility Side Cable, features a universal connector designed to mate with the Universal Input on the Vertiv Geist UPDU, Universal Power Distribution Unit. The FSC is available in common worldwide AC power specs ranging from 16A to 60A, 120V to 415V with single and three phase power configurations. Select the detachable Vertiv Geist FSC specific to the local power configuration to power the UPDU. (UPDU sold separately)



Viktiga egenskaper

Vertiv FSC3N003. Cable length: 3 m, Connector 1: NEMA L21-30P. Input voltage: 100-120/200-240 V, Input current: 30 A



Teknisk specifikation

Product colour	Black
Connector 2 gender	Female
Connector 1 gender	Male
Cable length	3 m
Connector 1	NEMA L21-30P
Connector 1 form factor	Angled
Connector 2 form factor	Straight
Connector 1 lockable	No
Connector 2 lockable	No
Plug and Play	Yes

Power supported (max)	8600 W
Input voltage	100-120/200-240 V
AC input frequency	50/60 Hz
Input current	30 A

Sustainability compliance	Yes

Weight	2720 g

Quantity per pack	1 pc(s)

Compliance certificates	RoHS,Trade Agreements Act (TAA)

Country of origin	United States
