OVERVIEW

Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime. Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs. Every unit is 100% tested for reliability and functionality.



Viktiga egenskaper

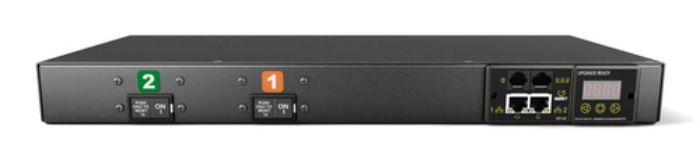

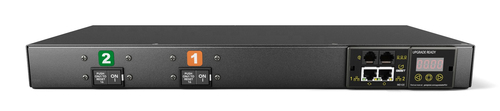

Vertiv Geist GI30077L. PDU types: Monitored, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Monitoring: Current, Power, Voltage, Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+. Nominal input voltage: 200-240 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz



Teknisk specifikation

PDU types	Monitored
Rack capacity	1U
Mounting	Horizontal
Product colour	Black
Display	LED

AC outlets quantity	8 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler
Serial ports quantity	2
Ethernet LAN (RJ-45) ports	2

Daisy chain	Yes
Reset button	Yes
Colour-coded outlets	Yes
Cable length	3 m
Certification	CE, EN55032, EN55024, IEC 60950-1, RCM

Monitoring	Current,Power,Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+

Nominal input voltage	200-240 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Power protection features	Over current
Maximum power	7300 W

Width	432 mm
Depth	216 mm
Height	44 mm
Weight	5440 g

Compliance certificates	RoHS
