Produktbeskrivning

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.



Viktiga egenskaper

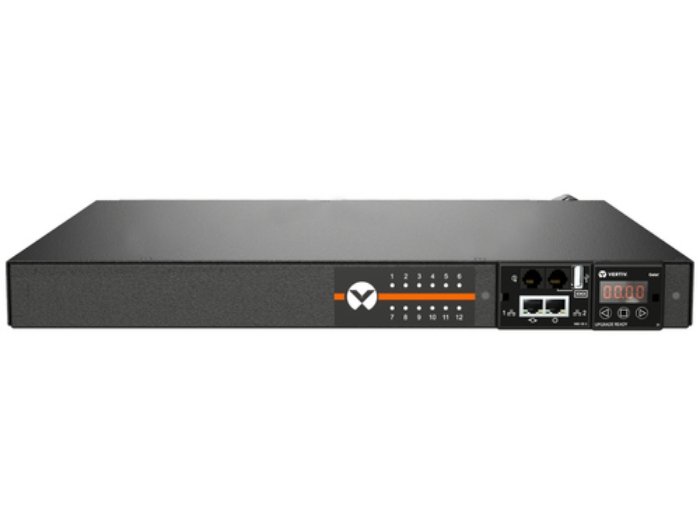

Vertiv Geist MGR3E1R5-12CF13-2PS56B2H10-S. PDU types: Monitored, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Monitoring: Power, Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog,.... Nominal input voltage: 200-240/346-415 V, Maximum current: 16 A, AC input frequency: 50/60 Hz



Teknisk specifikation

PDU types	Monitored
Type	Three-phase
Rack capacity	0U
Mounting	Horizontal
Product colour	Black
On/off switch	No

AC outlets quantity	12 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB ports quantity	1

LED indicators	Yes
Cable length	3 m
Certification	CE Marked UKCA Marked Complies with IEC 62368-1 (DOC Available) Complies with EN 55032 and EN 55035 RoHS Compliant Cم Mark RCM Mark (EMC Only) China RoHS

Monitoring	Power
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+, Modbus TCP

Nominal input voltage	200-240/346-415 V
AC input frequency	50/60 Hz
Maximum current	16 A
Load capacity	230 VA

Width	432 mm
Depth	305 mm
Height	44 mm

Package weight	4540 g
