Produktbeskrivning

OVERVIEW

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain realtime environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

- Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime.
- Reliable power distribution with local and remote outlet-level power monitoring options offer quick access to critical power usage information down to the device level to evaluate energy usage trends and maximize uptime.
- Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime.
- Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs.
- Daisy-chain up to 50 devices on a single IP address and reduce deployment time with selfconfiguration of downstream devices.



Viktiga egenskaper

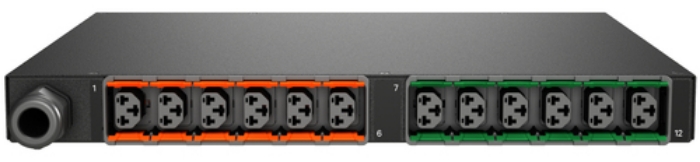

Vertiv Geist GR30202. PDU types: Monitored, Mounting: Horizontal, Housing material: Steel. AC outlets quantity: 12 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 200-240 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz



Teknisk specifikation

PDU types	Monitored
Mounting	Horizontal
Housing material	Steel
Product colour	Black,Green,Orange
Display	LED

AC outlets quantity	12 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	1

Daisy chain	Yes
Reset button	Yes
LED indicators	Yes
Colour-coded outlets	Yes
Cable length	3 m
Certification	CE, EN 55032, EN 55024, RCM, IEC 62368-1, Cم Mark

Monitoring	Current,Power,Voltage

Nominal input voltage	200-240 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Nominal output voltage	230 V
Power protection features	Over current
Maximum power	7300 W

Width	432 mm
Depth	305 mm
Height	44 mm
Weight	5440 g

Compliance certificates	RoHS
