OVERVIEW

Upgradeable Unit Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of input level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.

Benefits

Reliable power distribution with local and remote power monitoring options offer quick access to critical power usage information to evaluate energy usage trends and maximize uptime. Environmental monitoring capabilities with the addition of optional environmental sensors ensure users have critical infrastructure data at their fingertips to prevent climate-related equipment failure and system downtime. Gather comprehensive power data at the palm of your hand with the use of the Vertiv VLC mobile app. Fault-Tolerant Daisy Chaining with RSTP simplifies intelligent rPDU connectivity and ensures data is reported even when a break in the network chain occurs. Supports up to 40 rPDUs. Every unit is 100% tested for reliability and functionality.



Viktiga egenskaper

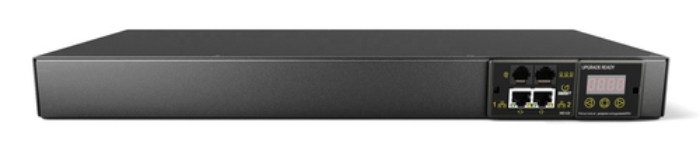

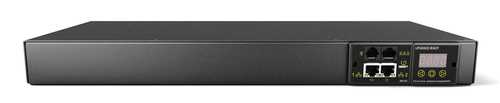

Vertiv Geist UI30027L. PDU types: Monitored, Rack capacity: 1U, Mounting: Horizontal. AC outlets quantity: 10 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Monitoring: Current, Power, Voltage, Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+. Nominal input voltage: 100-240 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: CE, EN55032, EN55024, IEC 60950-1, RCM, UL, c-UL



Teknisk specifikation

PDU types	Monitored
Rack capacity	1U
Mounting	Horizontal
Product colour	Black
Display	LED

AC outlets quantity	10 AC outlet(s)
Power plug	C20 coupler
AC outlet types	C13 coupler
Serial ports quantity	2
Ethernet LAN (RJ-45) ports	2

Daisy chain	Yes
Reset button	Yes
Certification	CE, EN55032, EN55024, IEC 60950-1, RCM, UL, c-UL

Monitoring	Current,Power,Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+

Nominal input voltage	100-240 V
AC input frequency	50 - 60 Hz
Maximum current	20 A
Nominal output voltage	100-240 V
Maximum power	3600 W

Width	432 mm
Depth	216 mm
Height	44 mm
Weight	5440 g

Compliance certificates	RoHS
