Produktbeskrivning

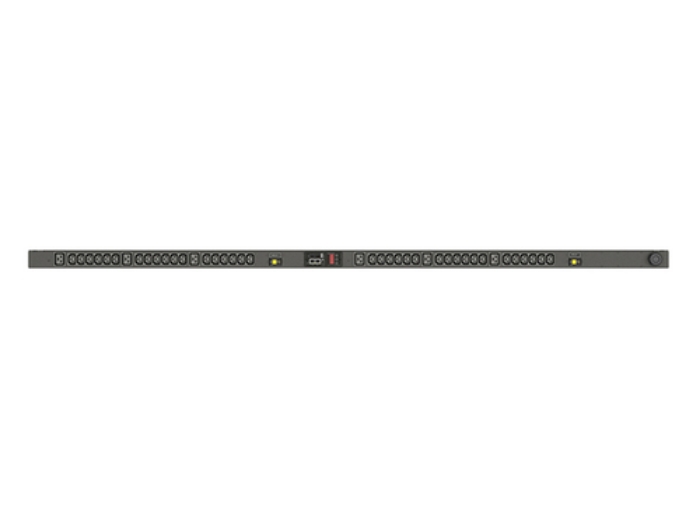

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.



Viktiga egenskaper

Vertiv Monitored Outlet Level EC. PDU types: Monitored, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 36 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Monitoring: Current, Power, Voltage, Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+. Nominal input voltage: 230/400 V, Maximum current: 32 A, AC input frequency: 50 Hz



Teknisk specifikation

PDU types	Monitored
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Display	LED

AC outlets quantity	36 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler

Reset button	Yes
LED indicators	Yes
Cable length	3 m
Certification	- CE Marked - RoHS Compliant & China RoHS - Complies with IEC 60950-1 (CB Certificate Available)

Monitoring	Current,Power,Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+

Nominal input voltage	230/400 V
AC input frequency	50 Hz
Maximum current	32 A
Output voltage	230 V
Load capacity	22000 VA
Maximum input current per phase	32 A
Maximum power	22000 W

Width	1829 mm
Depth	51 mm
Height	66 mm
Weight	9980 g

Package weight	9980 g

Operating temperature (T-T)	0 - 60 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	5 - 95 %
Operating altitude	0 - 3050 m

Compliance certificates	RoHS
