Produktbeskrivning

Upgradeable Outlet Level EC Monitored rPDUs provide reliable power distribution to critical IT equipment while delivering a comprehensive view of outlet level power usage via remote network access. Includes environmental monitoring capabilities to obtain real-time environmental metrics. Upgrade the hot-swappable monitoring device on select units to leverage new technologies and accommodate changing business needs.



Viktiga egenskaper

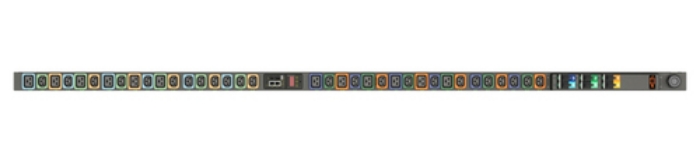

Vertiv MGR3EGW2-36PNB3-3PS56B2A10-S-A. PDU types: Monitored, Rack capacity: 0U, Type: Three-phase. AC outlets quantity: 36 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m. Monitoring: Current, Power, Voltage, Supported network protocols: DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+. Nominal input voltage: 200 - 415 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz



Teknisk specifikation

PDU types	Monitored
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black
Display	LED

AC outlets quantity	36 AC outlet(s)
Power plug	IEC 60309
AC outlet types	C13 coupler,C19 coupler
Serial ports quantity	1
Ethernet LAN (RJ-45) ports	2
USB ports quantity	2

LED indicators	Yes
Colour-coded outlets	Yes
Cable length	3 m

Monitoring	Current,Power,Voltage
Supported network protocols	DHCP, HTTP, HTTPS, IPv4, IPv6, LDAP, NTP, RADIUS, RSTP, SSH, SMTP, SNMP (v1/v2c/v3), Syslog, TACACS+

Nominal input voltage	200 - 415 V
AC input frequency	50 - 60 Hz
Maximum current	32 A
Output voltage	230 V
Maximum power	22000 W
Power protection features	Over current

Width	51 mm
Depth	66 mm
Height	1829 mm
Weight	9980 g

Compliance certificates	RoHS
