Produktbeskrivning

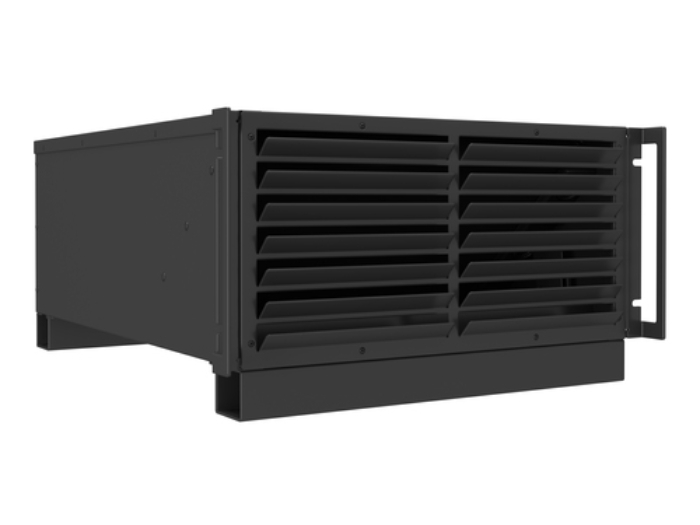

The Split version of the Vertiv VRC IT rack cooling unit has been specifically designed for applications which reauire efficient and space saving cooling solution but don’t allow the heat to be rejected into the room or double ceiling. Other benefits of the Split version include:
- it occupies less space in the rack than the Self Contained version (only 6U)
- Is more quiet since compressor is located in the outdoor unit
- Does not require "in-room" heat rejection possibilities like e.g. ventilated double ceiling.

VRC202KIT-L includes both - indoor unit VRC202KIT and Outdoor unit for low ambients VRC352KIT. They are shipped on 2 separate palets

Condensate pump, Display and SNMP/HTTP/Modbus monitoring interface are included as well. They are shipped inside of the Indoor unti packaging



Viktiga egenskaper

Vertiv VRC202KIT-L. Housing colour: Black, Cooling capacity in watts (max): 3500 W, Rack capacity: 6U. Input power: 3500 W, Input voltage: 230 V, Input frequency: 50-60 Hz. Width: 442 mm, Depth: 602 mm, Height: 264 mm. Country of origin: China, Shipping (inner) case width: 74.5 cm, Shipping (inner) case length: 83 cm



Teknisk specifikation

Housing colour	Black
Rack capacity	6U
Cooling capacity in watts (max)	3500 W
Maximum airflow	470 cfm
Certification	CE

Input power	3500 W
Input voltage	230 V
Input frequency	50-60 Hz
Number of input phases	1

Compliance certificates	RoHS

Width	442 mm
Depth	602 mm
Height	264 mm
Weight	23000 g

Harmonized System (HS) code	85389099
Country of origin	China
Shipping (inner) case width	745 mm
Shipping (inner) case length	830 mm
Shipping (inner) case height	460 mm
Shipping (inner) case gross weight	50000 g
