Produktbeskrivning

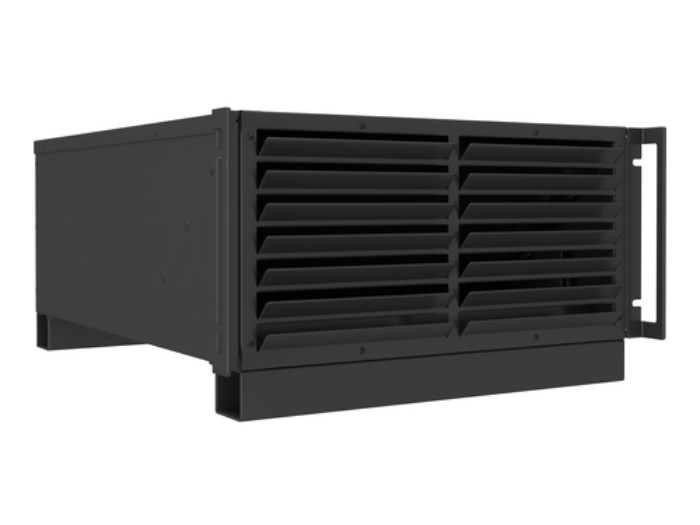

The Split version of the Vertiv VRC IT rack cooling unit has been specifically designed for applications which reauire efficient and space saving cooling solution but don’t allow the heat to be rejected into the room or double ceiling. Other benefits of the Split version include:
- it occupies less space in the rack than the Self Contained version (only 6U)
- Is more quiet since compressor is located in the outdoor unit
- Does not require "in-room" heat rejection possibilities like e.g. ventilated double ceiling.
VRC202KIT-N includes both - indoor unit VRC202KIT and Outdoor unit VRC302KIT. They are shipped on 2 separate palets
Condensate pump, Display and SNMP/HTTP/Modbus monitoring interface are included as well. They are shipped inside of the Indoor unti packaging
Viktiga egenskaper
Vertiv VRC202KIT-N. Housing colour: Black, Cooling capacity in watts (max): 3500 W, Rack capacity: 6U. Input power: 3500 W, Input voltage: 230 V, Input frequency: 50-60 Hz. Width: 442 mm, Depth: 602 mm, Height: 264 mm. Country of origin: China, Shipping (inner) case width: 74.5 cm, Shipping (inner) case length: 83 cm
Teknisk specifikation
Performance
| Housing colour | Black |
|---|
| Rack capacity | 6U |
|---|
| Cooling capacity in watts (max) | 3500 W |
|---|
| Maximum airflow | 470 cfm |
|---|
| Certification | CE |
|---|
Power
| Input power | 3500 W |
|---|
| Input voltage | 230 V |
|---|
| Input frequency | 50-60 Hz |
|---|
| Number of input phases | 1 |
|---|
Technical details
| Compliance certificates | RoHS |
|---|
Weight & dimensions
| Width | 442 mm |
|---|
| Depth | 602 mm |
|---|
| Height | 264 mm |
|---|
| Weight | 23000 g |
|---|
Logistics data
| Harmonized System (HS) code | 85389099 |
|---|
| Country of origin | China |
|---|
| Shipping (inner) case width | 745 mm |
|---|
| Shipping (inner) case length | 830 mm |
|---|
| Shipping (inner) case height | 460 mm |
|---|
| Shipping (inner) case gross weight | 50000 g |
|---|
