Produktbeskrivning

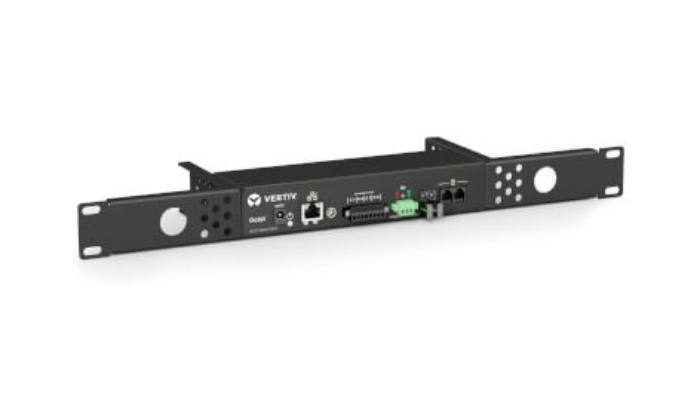

Environmental Monitor, on-board temperature, humidity and dew-point sensors, one relay contact, capacity to add 8 additional external sensors (4 RJ12 and 4 Dry Contact/ 0-5V), built-in PoE, Universal power supply included.



Viktiga egenskaper

Vertiv WATCHDOG 100-P UN. Measuring functions: Ambient temperature, Dew point temperature, Relative air humidity, Temperature measurement range: -20 - 85 °C, Accuracy: 0.3 °C. Width: 216 mm, Depth: 64 mm, Height: 41 mm. Certification: RoHS, FCC Part 15 Class A Conformance, Complies with EN 55032 and EN 55024, CE Marked



Teknisk specifikation

Measuring functions	Ambient temperature,Dew point temperature,Relative air humidity
Temperature measurement range	-20 - 85 °C
Accuracy	0.3 °C
Accuracy	3 %
Humidity measuring range	0 - 100 %
Units of measurement	°C,°F
Connectivity technology	Wired
Number of built-in relays	1
Product colour	Black
LED indicators	Yes

Ethernet LAN (RJ-45) ports	1

Built-in display	No

Width	216 mm
Depth	64 mm
Height	41 mm

Certification	RoHS, FCC Part 15 Class A Conformance, Complies with EN 55032 and EN 55024, CE Marked

Compliance certificates	RoHS
