Produktbeskrivning

Display Control over RS232 and LAN
Our platform allows users to control their displays, using a large range of commands through either a Local Area Network or direct RS232 Serial connection.

Wireless Display
Using either Microsoft Wireless Display Adaptor or Android Screen Sharing functions on Windows and Android devices, you can mirror screen to the display using embedded wireless display capabilities without using any external devices or cables.

Menu Lock
The menu lock feature allows the displays menus to be locked after installation in order to prevent any changes or access whilst being used in a public area.

SoC
HTML-5 based applications can be developed to work directly within the SoC platform of our displays. The displays are capable of working in either online or offline mode.

Auto Launch
We have made it easy to give any HTML5-based application link to the display within the SoC software. Upon this, the display will start with the given link. The application can either be an offline or an online application, allowing the customers to execute their own application.

Embedded CMS
Embedded content management program which supports playback library, ready templates and scheduler. With its simple and intuitive menus and layout options, it is effective for small and medium enterprises to make easy content management.

HDR10 & 4K HDMI @60Hz
By HDR10 compatibility, customers can guarantee that all featured content meets HDR guidelines and reaches superior picture quality as clearly and brightly as possible. Different than many products in the market, 4K content over HDMI source is supported at 60Hz.

DAP (Dolby Audio Processing) Technology
Our displays provide a comprehensive sound performance by using Dolby’s latest technology DAP. With embedded DAP Technology, superior sound performance achieves by intelligent audio equalizing, dialog enhancements and surround sound upmixing.

Scheduler
Digital Signage Monitor Software allows many important features such as Scheduler. Scheduler sets your display turn on/off time easily and lets you not to worry about the status of your displays in any time.

Pixel Shifting
Pixel Shifting is designed to be activated inside the SoC in order to prevent for potential risk of image sticking, caused by constant content. With this feature turned on, pixels on the screen will move in an interval while causing no interference of visual experience.

Source Switching
It is made available to set any Source on startup of the display. It can also be switched on any other signal source using scheduler and failover scenarios. This lets the users to freely control the process of their requirements allowing best user experience.

HDMI Wake Up
To maximize the user experience while using external video devices such as mediaplayers, display controllers or PCs, all our devices have HDMI Wakeup feature ready to turn on/off the display by simply pluging/unplugging the HDMI cable.

Crestron Connected
Crestron Connected certification complements VESTELs presence with inside the corporate, retail, government, better training and hospitality markets, all of which use expert AV controls. As those sectors hold to evolve with growing necessities for simple-to-use merchandise, seamless integration, dependable answers and community connectivity.



Viktiga egenskaper

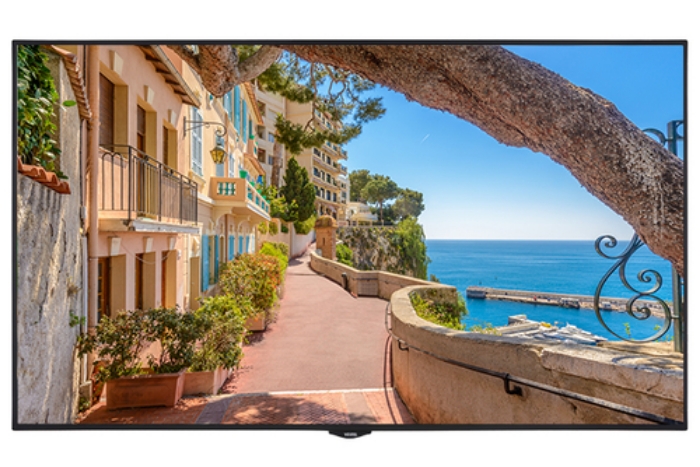

Vestel UHM65UH82/4. Display diagonal: 165.1 cm (65"), Display resolution: 3840 x 2160 pixels, Display brightness: 400 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 16/7. Product colour: Black



Teknisk specifikation

Display diagonal	65 "
LED backlighting type	Direct-LED
Display resolution	3840 x 2160 pixels
Display brightness	400 cd/m²
HD type	4K Ultra HD
Touchscreen	No
Native aspect ratio	16:9
Response time	8 ms
Contrast ratio (typical)	1200:1
Contrast ratio (dynamic)	40000:1
Viewing angle, horizontal	178 °
Viewing angle, vertical	178 °
Display number of colours	1.073 billion colours
Pixel pitch	0.372 x 0.372 mm
Active display area (W x H)	804 x 1428 mm
Panel life	50000 h
High Dynamic Range (HDR) supported	Yes
High Dynamic Range (HDR) technology	High Dynamic Range 10 (HDR10)
Haze rate	3 %
Native refresh rate	50 Hz

HDMI ports quantity	5
HDMI version	2.0
HDMI input ports quantity	4
HDMI output ports quantity	1
DVI port	No
VGA (D-Sub) input ports	1
DisplayPorts quantity	0
USB port	Yes
USB ports quantity	2
USB version	2.0
Ethernet LAN	Yes
Wi-Fi	No
Audio (L/R) in	1
Audio (L/R) out	1
RS-232 interface	Yes

Built-in speaker(s)	Yes
Number of built-in speakers	2
RMS rated power	16 W

Product colour	Black
Placement supported	Indoor
Orientation	Horizontal
VESA mounting	Yes
Panel mounting interface	440 x 400 mm
Bezel width (bottom)	21 mm
Bezel width (side)	15 mm
Bezel width (top)	15 mm

Purpose	Universal
Operating hours (hours/days)	16/7

Power consumption (typical)	190 W
Power consumption (standby)	0.5 W
Energy efficiency class (SDR)	G
Energy efficiency class (HDR)	G
Energy consumption (SDR) per 1000 hours	194 kWh
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz

Computer system	Yes
Computer system type	System on Chip (SoC)

Width	1459 mm
Depth	99 mm
Height	853 mm
Weight	24450 g

Package width	1607 mm
Package depth	177 mm
Package height	980 mm
Package weight	31850 g

Remote control included	Yes
Batteries included	Yes
Cables included	AC
Mounting kit	Yes

Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Certification	Safety, EMC, CE

Harmonized System (HS) code	85285210

Power supply type	Internal
