Produktbeskrivning

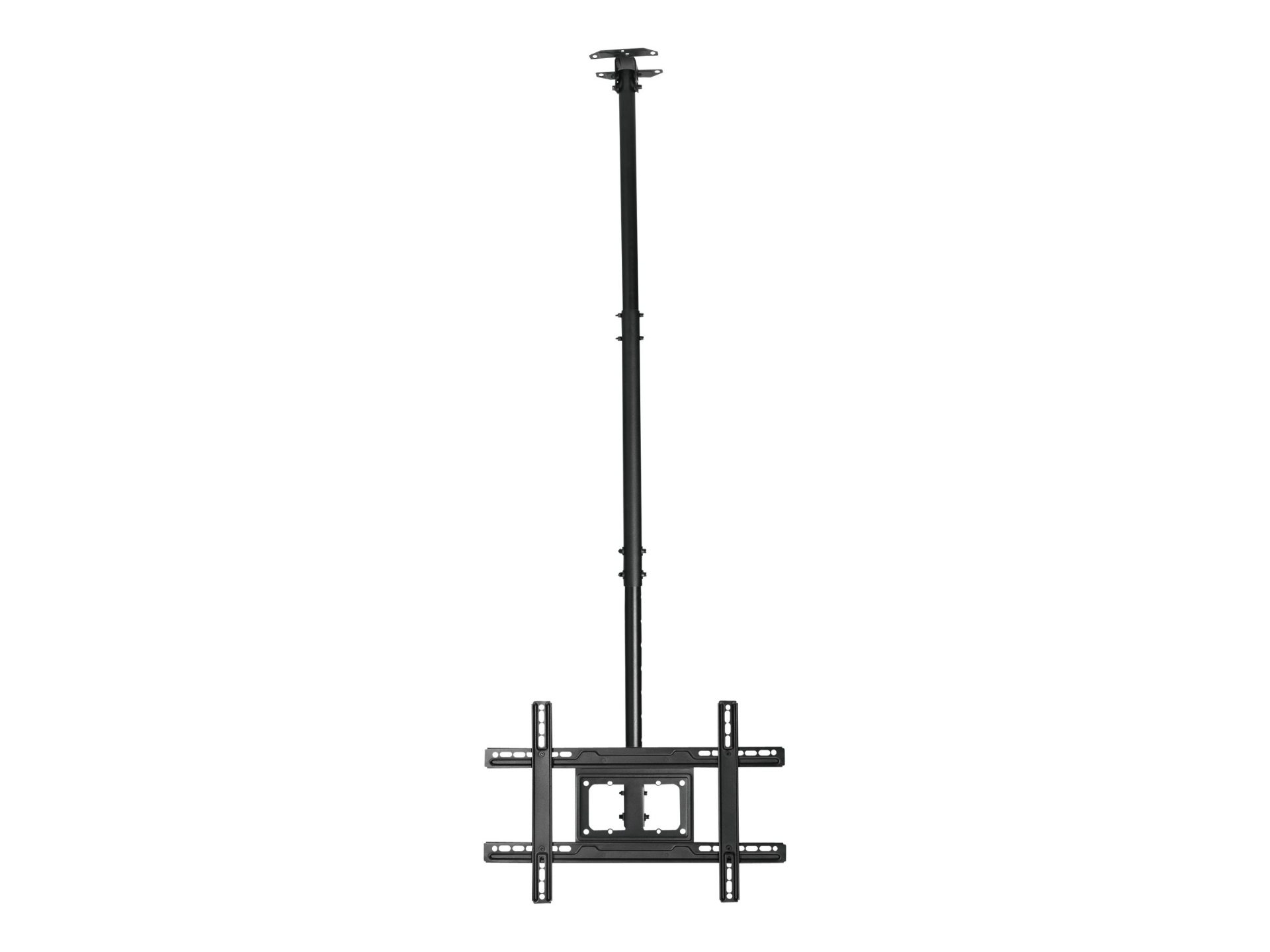

Vision's VFM-C (Vision Flat-Panel Mount - Ceiling) is functional and flexible. This mount fits any flat-panel display which has rear mounting holes up to 600 wide x 400 mm tall apart. This is a true one-size-fits-all ceiling mount.



Egenskaper

VESA
This mount is designed for flat panels which have holes up to 600 wide x 400 mm apart - known as VESA 600×400.

Massive range of drop
This distance from the ceiling to the center of the display ranges from 707-1577 mm / 27.8-62.1″.

Detachable VESA
Vision agonize over making the installation process as easy as possible. The universal VESA bracket attaches to the display on the ground, then the assemble hangs in place.

Cable management
The 38 mm / 1.5″ drop pole easily allows cables to drop down inside.

3-part pole
The pole can be assembled with either 2 or 3 sections which gives it an incredible range of telescopic adjustment. Installers can turn up to site and get the job down, no matter what they encounter onsite.

Massive VESA range
Fits small monitors from 20″ all the way up to 75″. If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

Tilt
The tilt adjustment allows the display to be directed at the audience to avoid glare and optimize the viewing angle. It can tilt 5 degrees up, or 25 degrees down.

Swivel with display in place
60 degrees of swivel range makes it really easy to install. Loosening the swivel adjustment bolts will not drop the display.

Retail applications
Ideal for doctors waiting rooms, dentist's ceilings, or to deliver digital signage in any retail environment.

Cathedral ceiling
The ceiling fixture tilts to accommodate sloping ceilings. It can tilt to 90 degrees to fix to the side of a ceiling joist.



Teknisk specifikation

Bredd	65 cm
Djup	18.5 cm
Justerbar höjd	92.2-179.2 cm
Vikt	7.3 kg
Material	Stål
Färg	Svart
Förpackningens innehåll	Skruvar

Typ	Monteringssats
Monteringskomponenter	Takmontering
Design	Teleskopisk
Rekommenderad användning	LCD-display
VESA-infästningsgränssnitt	100 x 100 mm, 200 x 200 mm, 400 x 300 mm, 400 x 400 mm, 600 x 400 mm, 300 x 300 mm, 500 x 400 mm, 100 x 200 mm, 300 x 400 mm
Kabelhantering	Inbyggd kabelhantering
Rekommenderad TV-storlek	37"-75"
Lutning	-5° till 25°
Lyftkraft	87 cm
Svängtapp	-30° till 30°
Justeringar	Höjd, lutning, rotation
Maxlast	50 kg
Ytskikt	Pulverlackerad

Emballagets mått (BxDxH) / vikt	78 cm x 24.5 cm x 18 cm / 9.1 kg

Service och support	Begränsad garanti - livstid
