Produktbeskrivning

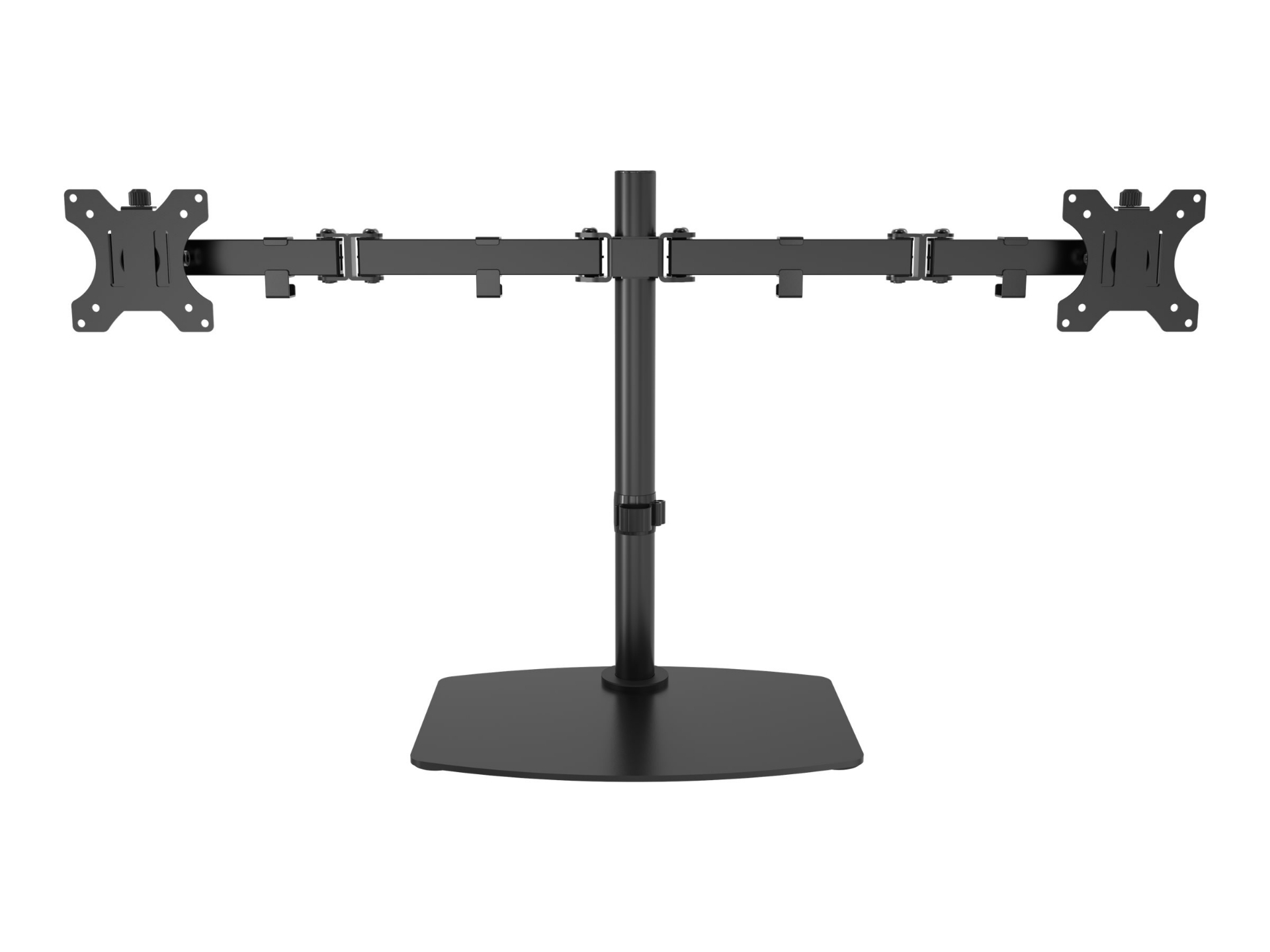

The VFM-DSD (Vision Flat-panel Mount - Desk Stand Dual) takes the popular desk post mount and replaces the clamp with an attractive flat base. It fits any two monitors which have 75 x 75 mm or 100 x 100 mm rear mounting holes.



Egenskaper

Thumbscrews
Vision includes additional screws to ensure you can successfully install your display with the screws included, and the screws are thumbscrews so you can be done faster, without a tool.

Quick release
The VESA plates are quick-release to assist with fast assembly.

SWL 8 kg
The VFM-DSD can support two monitors up to 8 kg (17.6 lbs) each.

Display size 13-32"
If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

Double-pivot
Two articulated points in each horizontal arms allow a huge range of positioning. The arm reach is up to 460 mm (18").

Cable management
Clips on the arm secure cables which can be routed along the mount.

Variable height
Slide the arm up and down the post, then lock off at required height. The post is 443 mm (17.3") tall.

Swivel and tilt
The ultra-flexible design gives -45°~45° of tilt adjustment, and -90°~90° of swivel range.

Rotate
Easily move the monitor from landscape to portrait style.

Scratch-resistant
The powder-coated surface is thicker and more scratch resistant than paint.



Teknisk specifikation

Bredd	91.3 cm
Djup	14.8 cm
Höjd	54.8 cm
Vikt	2.65 kg
Material	Stål
Färg	Svart

Typ	Ställ
Rekommenderad användning	2 LCD-bildskärmar
Placering/Montering	Skrivbord
VESA-infästningsgränssnitt	100 x 100 mm, 75 x 75 mm
Kabelhantering	Inbyggd kabelhantering
Rekommenderad TV-storlek	13"-32"
Lutning	-45° till 45°
Svängtapp	-90° till 90°
Justeringar	Höjd, lutning, rotation
Maxlast	16 kg
Ytskikt	Pulverlackerad
Detaljerad information	Stående orientering, liggande orientering

Emballagets mått (BxDxH) / vikt	25.7 cm x 47 cm x 8.8 cm / 6.54 kg

Service och support	Begränsad garanti - livstid
