Produktbeskrivning

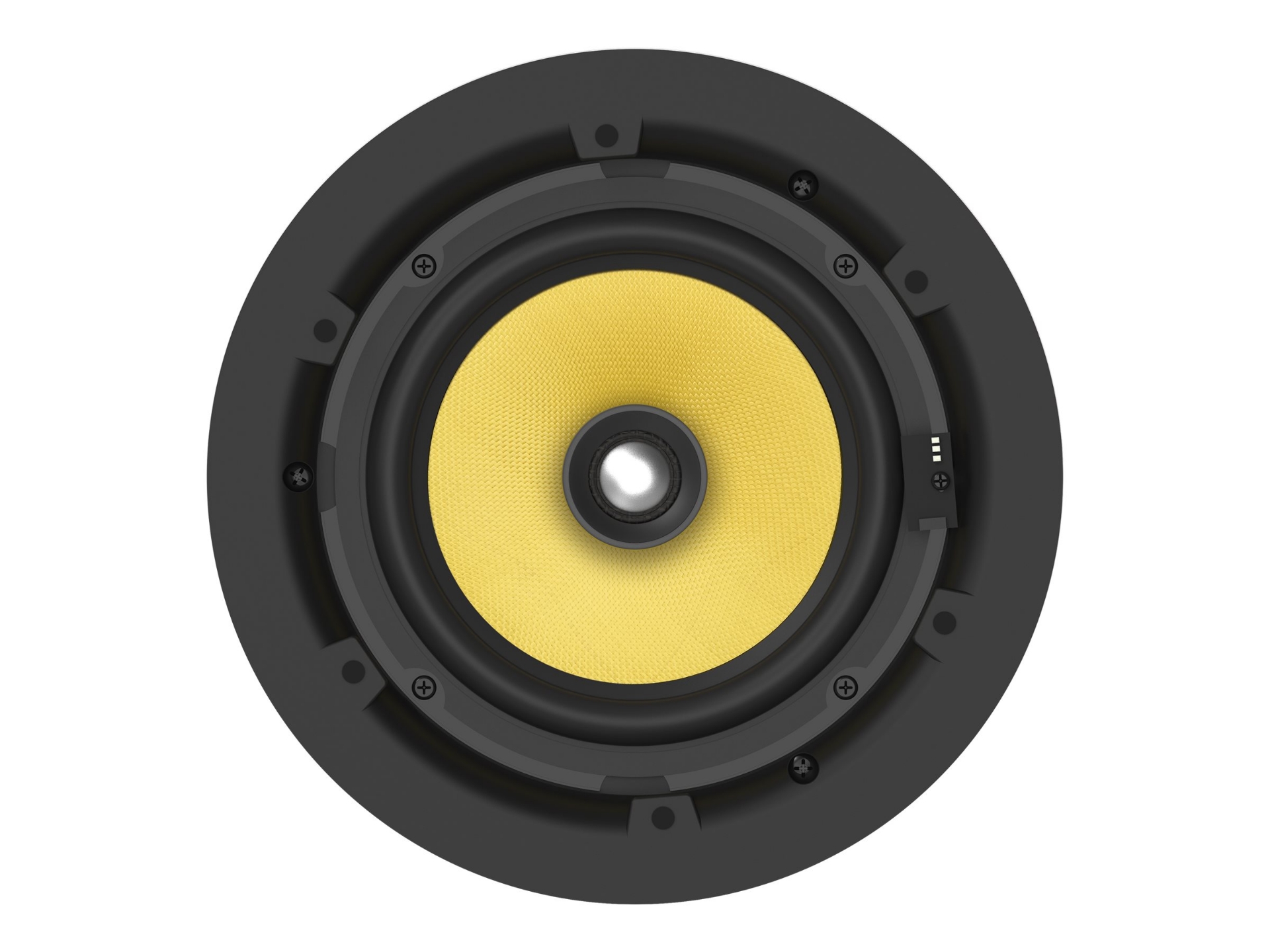

The CS-1900P are based on Vision’s passive ceiling loudspeakers but have a powerful 70 watt amplifier built in. Easy to use and virtually invisible, these professional-grade loudspeakers are ideal for meeting spaces that can be divided, or at home.



Egenskaper

Rename Bluetooth, set pin
Connect via USB and run software to rename and set the pin. The speakers store the details for up to eight paired devices. Even if you change the PIN these eight devices will still connect without needing the new pin. When you pair a 9th device the 1st device will need to enter the password again to connect.

Auto-switching
Choose to change to the Bluetooth input automatically when a device is paired, or manually switch.

Remote control
An included IR remote control gives the user full control, including bass and treble adjustment.

IR front and rear
Switch between the front IR receiver, or the rear IR receiver if using a wired control system, or off.

Master/slave
The amplifier is housed in the "master" loudspeaker which has the connection panel, and a speaker output connects to the included passive "slave" loudspeaker.

Daisy-chain
If you require two pairs for the room an audio output allows you to pass the audio signal on to a second pair of CS-1900P. In fact, you can daisy-chain as many pairs as you need using this line-level audio output.

RS-232
For integration into a controlled audio-visual environment they can be controlled with RS-232 (serial) codes. Vision's Techconnect Control can be used to control them.

2-way with Kevlar driver
Two-way woofer and tweeter design with quality materials and a passive cross-over for superior audio.

Auto-standby
If the amplifier senses no input for ten minutes it will automatically go into standby mode.



Teknisk specifikation

Typ av produkt	Högtalare
Färg	Vit
Material	ABS-plast
Rasterfärg	Vit

Systemkomponenter	2 högtalare
Högtalartyp	Koaxial - 2-vägs - aktiv
Kontinuerlig ström	35 Watt
Frekvensrespons	80 - 20000 Hz
Förstärkare	Integrerad
Gränssnitt	Bluetooth
Rekommenderad placering	Montering i taket

Specifikationer för drivrutin	Högtalare: bashögtalarelement - 6.5" - kevlar Högtalare: diskanthögtalarelement - 0.5" - silke

Anslutningstyp	Linjeingång för ljud (RCA-telefon x 2) Linjeingång för ljud (minihörlurskontakt 3,5 mm) Ljudingång med kedjekort (minihörlurskontakt, stereo 3,5 mm) Kedjekortsljudutgång (minihörlurskontakt 3,5 mm)

Inkluderade tillbehör	IR-fjärrkontroll, magnetiska högtalarfronter, högtalarkabel (5 m)

Nätspänning	Växelström 100/120/230 V (50/60 Hz)

Dimensioner (BxDxH)/vikt	Högtalare för herre: 22.4 cm x 22.4 cm x 9.5 cm / 1.3 kg Högtalare för slav: 22.4 cm x 22.4 cm x 9.5 cm / 1.2 kg

Diameter	19.8 cm

Emballagets bredd	25.3 cm
Emballagets djup	25.3 cm
Emballagets höjd	27.3 cm
Emballagets vikt	4 kg

Service och support	Begränsad garanti - livstid
