Produktbeskrivning

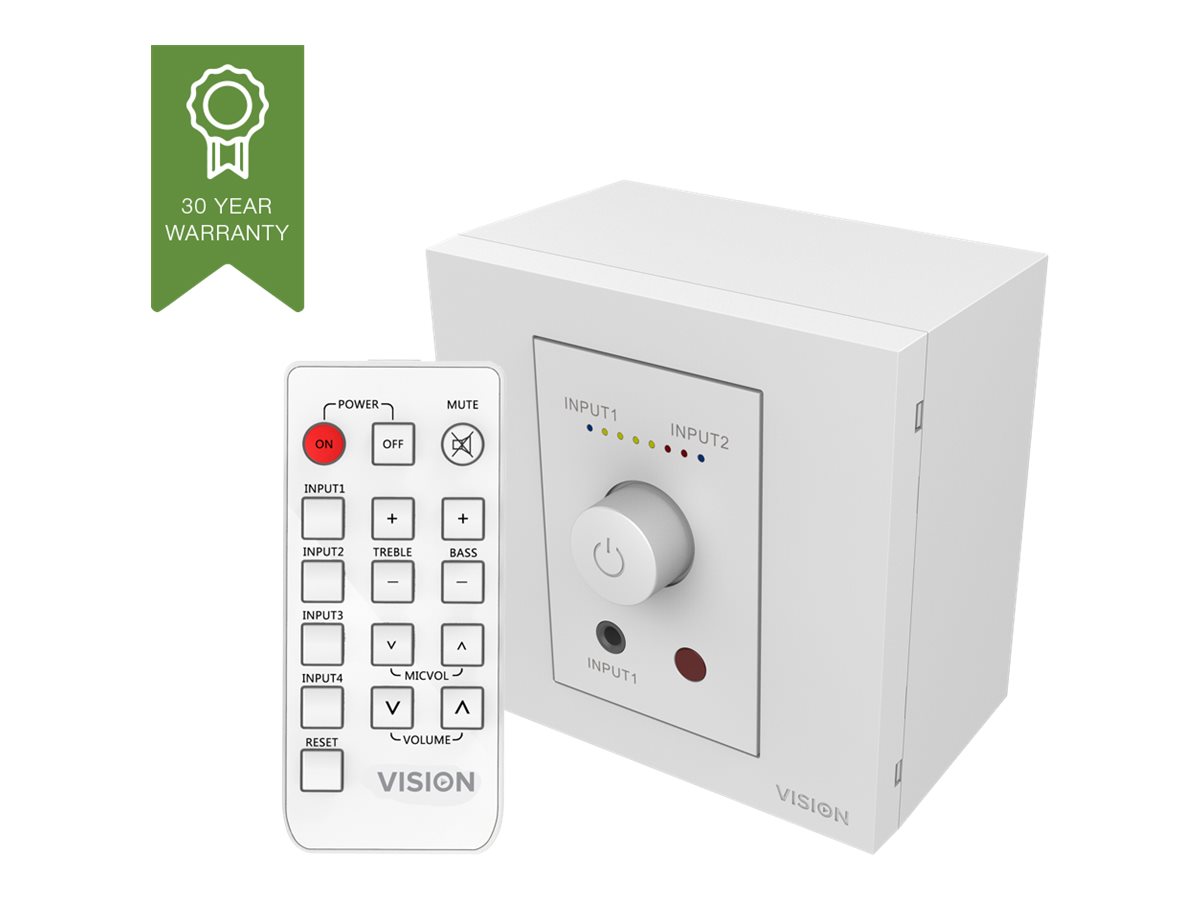

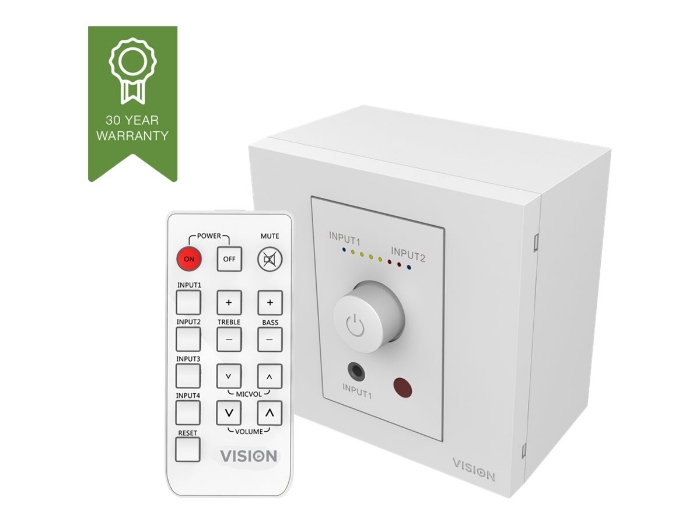

By using advanced low-impedance digital amplifier chip technology the improved Techconnect amp module outputs a massive sound, but fits into the smaller space. Can be positioned anywhere in the room, making it perfect for training rooms, boardrooms, and classrooms.
Egenskaper
Front panel inputTwo inputs are wired into the rear with removable phoenix connectors, but input 1 is also duplicated on the front panel with a mini-jack socket for convenience. This "half-normaled" input disconnects the rear terminal, while in use.
D-class amplifierDigital amplifiers use no power, unless they are amplifying program, so even on at full volume, unless it is receiving input, it is effectively off. Digital amplifiers also have the advantage of running cold, so a bulky heatsink is not necessary.
Power four speakersDon't let size deceive you: the Techconnect amp can drive into a high load, allowing you to power a few speakers.
Preset memoryBy default, when power is activated the Techconnect amp turns on and resumes the recent settings. For hospitality applications it can be set to return to a preset input and level whenever it is powered on - for example in hotel guest rooms.
Tactile dialA simple clear control interface makes the product easy to use long press on the dial to power on and off. Short press to change input.
Teknisk specifikation
Allmänt
Typ av produkt | Förstärkare |
Färg | Vit |
Ljudsystem
Ljudkanaler | Stereo |
Funktioner | Förstärkare |
Förstärkarklass | D |
Ljudspecifikationer | Förstärkare - Responsbandbredd - 80 - 22000 Hz - SNR (förhållande signal-brus) - 98 dB - THD - 1% |
Antal utgångskanaler | 2 kanaler |
Utgångsström (per kanal) | 25 Watt |
Uteffekt / total | 50 Watt |
Specifikationer för förstärkarutmatning | 25 Watt - 8 ohm - 20 - 22000 Hz - THD 1% - 2 kanaler (huvud-) |
Egenskaper | Digital Amplifier |
Anslutningar
Kontakter | 2 x linjeingång för ljud (Phoenix-typ) - bak Linjeingång för ljud (minihörlurskontakt, stereo 3,5 mm) - fram |
Diverse
Inkluderade tillbehör | Fjärrkontroll, 2 högtalarkablar (5 m), bakre dosa för ett uttag, ram för ett uttag, 2 ingångskablar (1,5 m) |
Strömtillförsel
Nätspänning | AC 100-240 V (50/60 Hz) |
Energiförbrukning vid drift | 50 Watt |
Tillverkarens garanti
Service och support | Begränsad livstidsgaranti |
Mått och vikt
Bredd | 4.2 cm |
Djup | 3.6 cm |
Höjd | 6.4 cm |
Vikt | 63 g |
Mått och vikt (brutto)
Bredd (brutto) | 24 cm |
Djup (brutto) | 6.3 cm |
Höjd (brutto) | 20.5 cm |
Vikt (brutto) | 1.1 kg |
