Produktbeskrivning

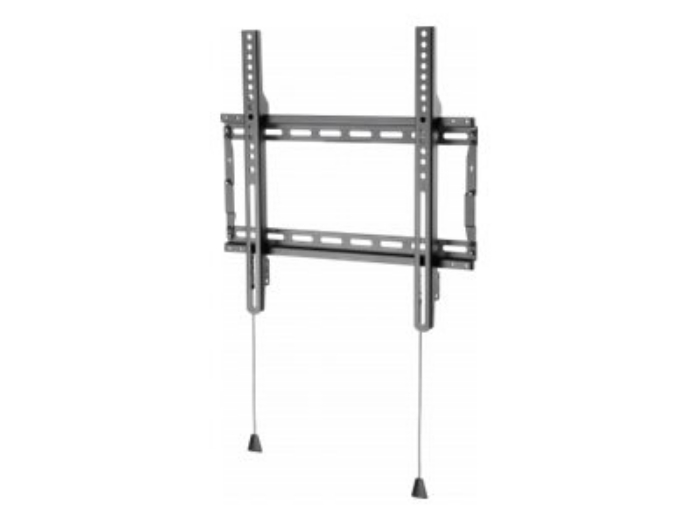

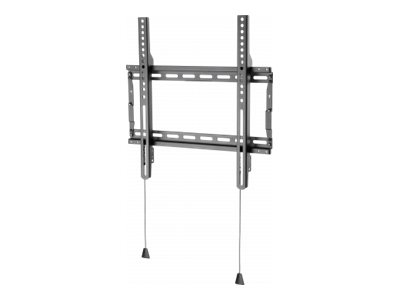

Vision's Vision Flat-panel Mount - Wall range is flexible and includes everything you need to get the display on the wall. The VFM-4X4V fits any flat-panel LCD or LED screen which has rear mounting holes up to 400 wide x 400 mm tall apart. It has a simple design for price-sensitive applications.
Egenskaper
SWL 60kgVision engineered the cost down by using less material, but it can still support displays weighing up to 60 kg / 132 lb.
Everything includedVision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
For 32-55" displaysFits most displays from 32-55" subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount.
Meets ADA regulationsThe thin design holds the display just 30 mm / 1.2" off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.
FlexibleA proven design allows fast fixing. Slotted holes on the horizontal part allow easy fixing to stud walls, and side-to-side adjustment.
SecureOnce in place locking strips slide up to prevent the assembly being lifted off the bracket by opportunistic thieves.
Non-tiltStrength comes from a simpler non-tilting design.
Teknisk specifikation
Allmänt
Bredd | 44.5 cm |
Djup | 2.9 cm |
Höjd | 43.1 cm |
Vikt | 1.5 kg |
Material | Kallvalsat stål |
Färg | Svart |
Förpackningens innehåll | 4 x M5x14-skruvar, 4 x M6x14-skruvar, 4 x M6x30-skruvar, 4 x M8x30-skruvar, 4 x M8x50-skruvar |
AV-komponenter
Typ | Monteringssats |
Monteringskomponenter | Väggfäste |
Design | Fixerad |
Rekommenderad användning | LCD-display |
VESA-infästningsgränssnitt | 200 x 200 mm, 400 x 300 mm, 400 x 200 mm, 400 x 400 mm, 300 x 300 mm, 200 x 300 mm, 300 x 400 mm, 200 x 400 mm |
Låsbar | Ja |
Rekommenderad TV-storlek | 32"-65" |
Maxlast | 60 kg |
Låstyp | Hänglås (ingår ej) |
Ytskikt | Pulverlackerad |
Mått och vikt (komponenter)
Emballagets mått (BxDxH) / vikt | 45 cm x 8.7 cm x 6.4 cm / 1.66 kg |
Tillverkarens garanti
Service och support | Begränsad garanti - livstid |
