Produktbeskrivning

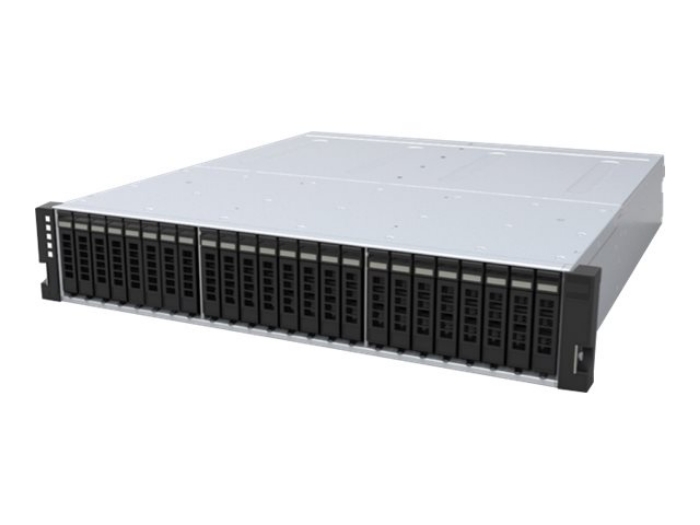

The 2U24 Flash Storage Platform is a key element of next-generation Software-Defined Storage (SDS) systems. The platform balances high performance with capacity, delivering high IOPS with low latency at high capacity.

By decoupling available storage from CPU resources, the platform offers the flexibility to improve the compute-to-capacity ratio. The 2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and cloud service providers requiring dense, shared flash storage.



Egenskaper

● Connect up to six hosts via the 12 Gb/s SAS-3 interface
● Enterprise-class high availability: hot-swappable SSDs, I/O modules, and PSUs (integrated fans)
● Easily maintained, SSD modules are front-accessible and hot-swappable



Teknisk specifikation

Typ av enhet	Kabinett för lagringsenheter
Modell	Kan monteras i rack - 2U

Inbyggda enheter	Lysdiodspanel
Antal installerade enheter / moduler	12
Antal enheter/moduler som stöds	24
Enheter som stöds	SATA-600

Total array-kapacitet	11.52 TB
Max kapacitet som stöds	184.32 TB

CPU	Ingen CPU

Typ	SSD - hot-swap
Kapacitet	12 x 960 GB
Typ av gränssnitt	SATA 6Gb/s
Antal skrivningar per dag (DWPD)	3
Egenskaper	Instant Secure Erase (ISE)

Expansionsfack	24 (totalt)/ 0 (ledig) x hot-swap - 2.5"
Gränssnitt	6 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644)

Egenskaper	SCSI Enclosure Services (SES)

Nätdel	2 x intern strömförsörjning - hot-plug
Redundant ström	Ja
Schema för redundant ström	1+1
Nätspänning	AC 120/230 V - 50/60 Hz
Effekt	600 Watt

Bredd	44.6 cm
Djup	53.6 cm
Höjd	8.74 cm

Min temperatur vid drift	5 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 85%
