Produktbeskrivning

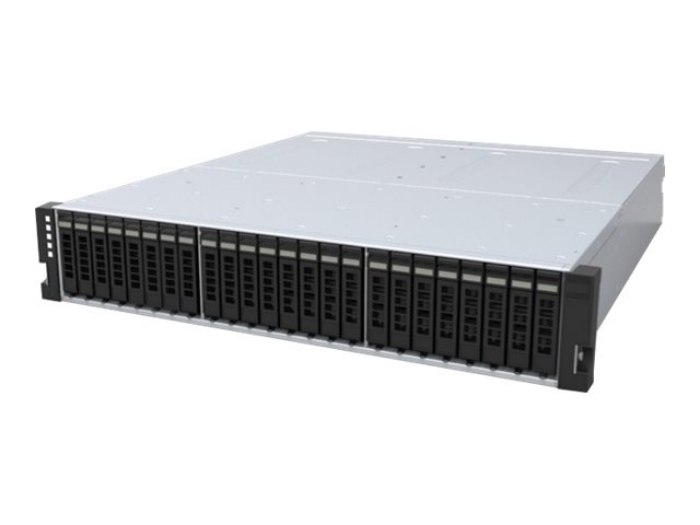

The 2U24 Flash Storage Platform is a key element of next-generation Software-Defined Storage (SDS) systems. The platform balances high performance with capacity, delivering high IOPS with low latency. By decoupling available storage from CPU resources, the platform offers the flexibility to improve the compute-to-capacity ratio. The 2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and cloud service providers requiring dense, shared flash storage.



Egenskaper

Flash storage platform for software-defined storage
The 2U24 Flash Storage Platform is a key element of next generation software-defined storage (SDS) systems. The Platform balances performance with capacity, delivering high IOPS, low latency at up to 184TB capacity. It also offers flexibility to improve compute-to-capacity ratio by decoupling available storage from CPU resources.

Designed for enterprise and the cloud
2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and cloud service providers who require dense, shared flash storage.



Teknisk specifikation

Typ av enhet	Kabinett för lagringsenheter
Modell	Kan monteras i rack - 2U

Inbyggda enheter	Lysdiodspanel
Antal installerade enheter / moduler	24
Antal enheter/moduler som stöds	24
Enheter som stöds	SAS-3

CPU	Ingen CPU

Typ	SSD - hot-swap
Kapacitet	24 x 3.84 TB
Typ av gränssnitt	SAS 12Gb/s
Antal skrivningar per dag (DWPD)	1
Egenskaper	Read-Intensive Endurance

Expansionsfack	24 (totalt)/ 0 (ledig) x hot-swap - 2.5"
Gränssnitt	6 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644)

Egenskaper	SCSI Enclosure Services (SES)

Nätdel	2 x intern strömförsörjning - hot-plug
Redundant ström	Ja
Schema för redundant ström	1+1
Nätspänning	AC 120/230 V - 50/60 Hz
Effekt	600 Watt

Bredd	44.6 cm
Djup	53.6 cm
Höjd	8.74 cm

Min temperatur vid drift	5 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 85%
