Produktbeskrivning

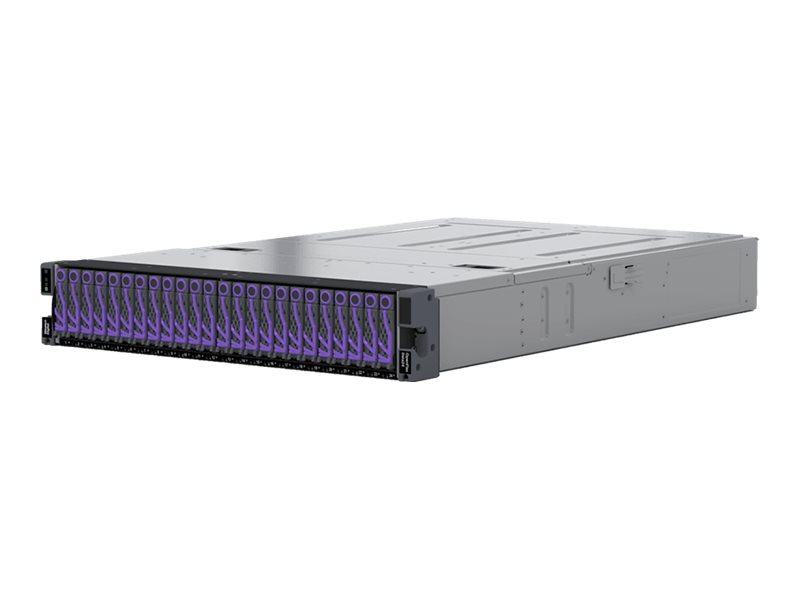

Western Digital's OpenFlex Data24 NVMe-oF Storage Platform extends the high performance of NVMe flash to shared storage. It provides low-latency sharing of NVMe SSDs over a high-performance Ethernet fabric to deliver similar performance to locally attached NVMe SSDs. Industry-leading connectivity, using Western Digital RapidFlex network adapters, allows up to six hosts to be attached without a switch.

The OpenFlex Data24 NVMe-oF Storage Platform can also be used as a disaggregated storage resource in an open composable infrastructure environment. OpenFlex Data24 is built to deliver high availability and enterprise-class reliability.



Egenskaper

● High density and capacity
● Up to 368TB in 2U
● Low latency
● Dual port SSDs
● Bandwidth match between SSDs (Storage) and I/O (Network) - no oversubscription
● RESTful API support for simplified management
● Superior serviceability and high-quality global support services



Teknisk specifikation

Typ av enhet	Kabinett för lagringsenheter
Modell	Kan monteras i rack - 2U

Inbyggda enheter	2 x I/O-modul
Antal installerade enheter / moduler	12
Antal enheter/moduler som stöds	24
Enheter som stöds	PCIe (NVMe)

Max kapacitet som stöds	368 TB

CPU	ARM

Typ	SSD
Kapacitet	12 x 3.84 TB
Typ av gränssnitt	PCI Express (NVMe)
Antal skrivningar per dag (DWPD)	1
Egenskaper	Säker raderingsfunktion, Dual Port, Read-Intensive Endurance
Tillverkare	Western Digital

Expansionsfack	24 (totalt)/ 12 (ledig) x hot-swap
Expansionsuttag	6 (totalt)/ 0 (ledig) x PCIe
Gränssnitt	6 x Ethernet 100Gb 1 x Ethernet 1000 (hantering) - RJ-45

Egenskaper	Non-Volatile Memory Express over Fabric (NVMe-oF)

Nätdel	2 x intern strömförsörjning - hot-plug
Nätspänning	200 - 240 V
Effekt	2000 Watt
80 PLUS-certifiering	80 PLUS Platinum

Bredd	44.8 cm
Djup	71.12 cm
Höjd	8.75 cm

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	10 °C
Max temperatur vid drift	35 °C
