Produktbeskrivning

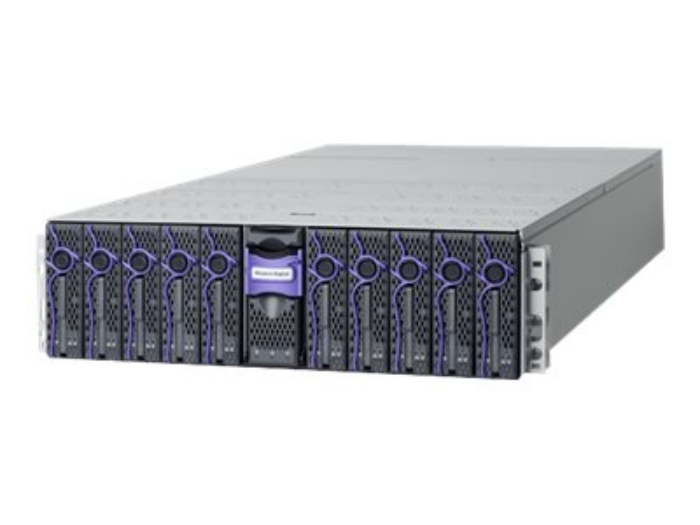

The E3000 is a 3U rack mounted data storage enclosure built on the OpenFlex platform. The OpenFlex E3000 are fabric devices that leverage this OCI approach in the form of disaggregated data storage using NVMe-over-Fabrics. NVMe-oF is a networked storage protocol that allows storage to be disaggregated from compute to make that storage widely available to multiple applications and servers. By enabling applications to share a common pool of storage capacity, data can be easily shared between applications, or needed capacity can be allocated to an application regardless of location.



Teknisk specifikation

Formfaktor	Kan monteras i rack - 3U
Antal blad som stöds	Upp till 10
Kylsystem	Fläkt x 4 / hotswap, redundant
Egenskaper hos systemkabinett	Hot-swap-bladfack

Gränssnitt	1 x hantering - RJ-45

Nätdel	Nätaggregat - hot-plug
Installerat antal	2
Max antal som stöds	2
Nätspänning	AC 120/230 V (50/60 Hz)
Effekt	1600 Watt

Bredd	44.7 cm
Djup	82.8 cm
Höjd	13.1 cm

Min temperatur vid drift	5 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	8 - 90%
