Produktbeskrivning

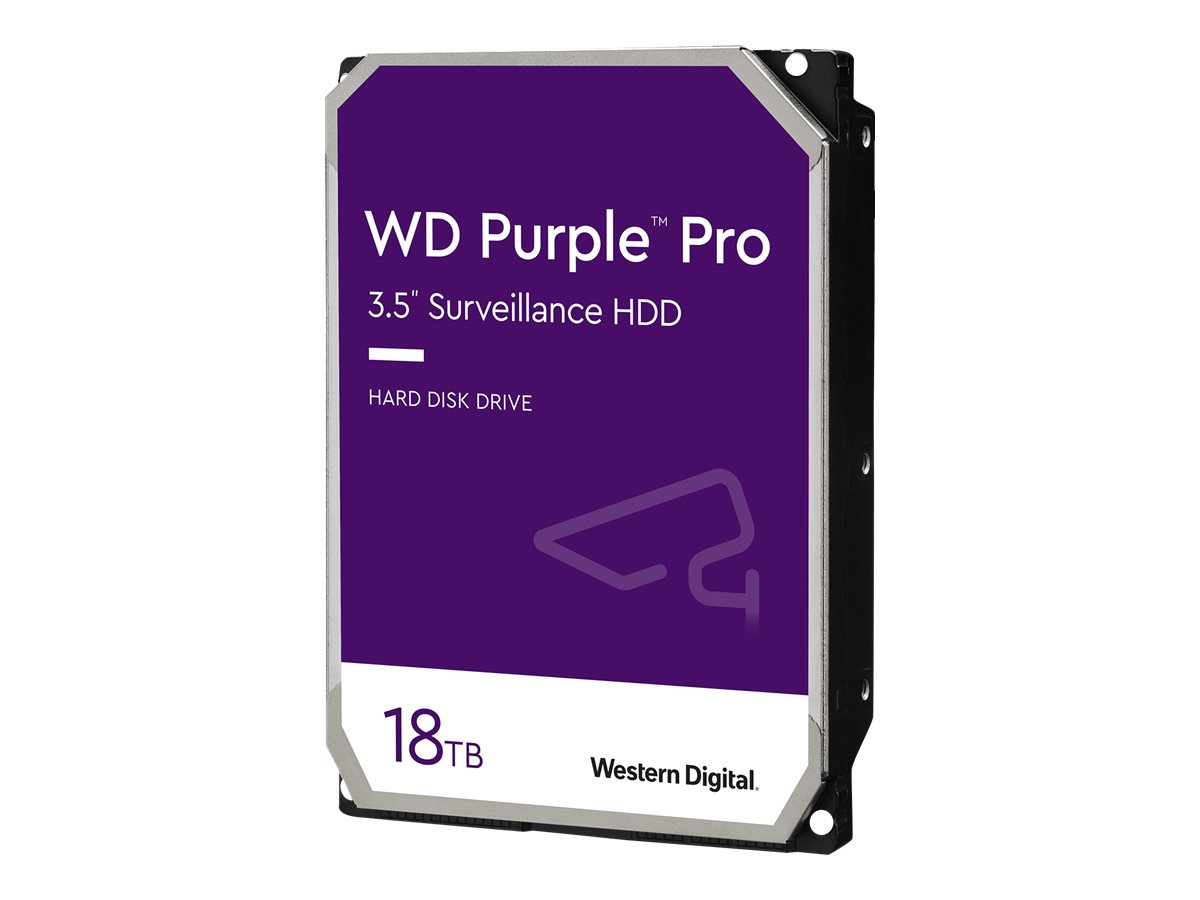

WD Purple Pro drives are designed for advanced AI-enabled recorders, video analytics servers and deep learning solutions requiring additional capacity, performance and workload capability.
Egenskaper
Storage for advanced smart video solutionsWD Purple Pro drives are designed for new generations of high-end AI-enabled recorders, video analytics appliances, deep-learning servers and cloud solutions that can benefit from high-capacity storage with high performance and additional workload capability. WD Purple Pro drives also feature enterprise-class performance, data integrity and drive reliability, especially in larger-scale systems and enclosures where operational vibration is present.
Empower your smart video solution.With WD Purple Pro smart video storage, you have a drive engineered for high performance, durability and workload capability for advanced always-on AI-enabled smart video recorders, appliances, and servers. Efficiently and effectively extract value and insights from streamed and stored video, and help deliver a smarter world with advanced WD Purple Pro smart video storage.
Teknisk specifikation
Allmänt
| Typ av enhet | Hårddisk - inbyggd |
|---|
| Kapacitet | 18 TB |
|---|
| Formfaktor | 3.5" |
|---|
| Gränssnitt | SATA 6Gb/s |
|---|
| Buffertstorlek | 512 MB |
|---|
| Egenskaper | Advanced Format-teknik, 24x7 kontinuerlig drift, CMR (Conventional Magnetic Recording), AllFrame AI, stöder upp till 64 kameror, fläckbeständig |
|---|
| Bredd | 101.6 mm |
|---|
| Djup | 147 mm |
|---|
| Höjd | 26.1 mm |
|---|
| Vikt | 690 g |
|---|
Prestanda
| Hårddiskens överföringshastighet | 600 MBps (extern) |
|---|
| Intern datafrekvens | 272 MBps |
|---|
| Spindelhastighet | 7200 rpm |
|---|
Pålitlighet
| MTBF (genomsnittstid mellan fel) | 2,500,000 timmar |
|---|
| Dygnet-runt drift | Ja |
|---|
| Oåterkalleligt fel | 1 per 10^15 |
|---|
| Ladda/ladda ur cykler | 600,000 |
|---|
Expansion och anslutningar
| Gränssnitt | 1 x SATA 6 Gb/s |
|---|
| Kompatibelt fack | 3.5" |
|---|
Strömtillförsel
| Strömkonsumtion | 6.3 Watt (läsning/skrivning)
5.9 Watt (inaktiv)
0.9 Watt (viloläge)
0.9 Watt (viloläge) |
|---|
Diverse
| Standarder som följs | RoHS 2011/65/EU |
|---|
Tillverkarens garanti
| Service och support | Begränsad garanti - 5 år |
|---|
Miljöparametrar
| Min temperatur vid drift | 0 °C |
|---|
| Max temperatur vid drift | 65 °C |
|---|
| Min temperatur vid förvaring | -40 °C |
|---|
| Max temperatur vid förvaring | 70 °C |
|---|
| Stöttolerans (vid drift) | 50 g @ 2 ms |
|---|
| Stöttolerans (i vila) | 250 g @ 2 ms |
|---|
